Steering Column MULTIFUNCTION Switch - Left
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

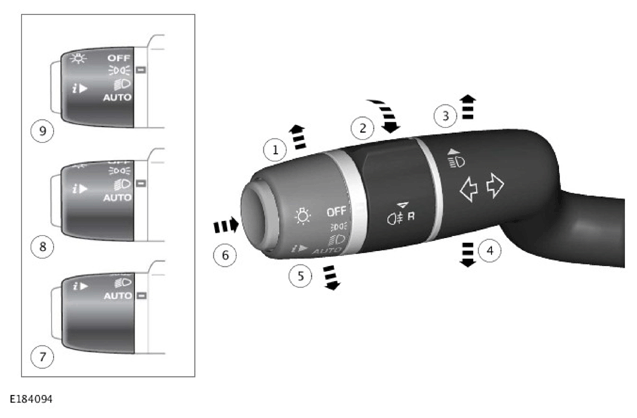

| ITEM | DESCRIPTION |
|---|---|
| 1 | High beam |
| 2 | Rear fog lamp |
| 3 | Right turn signal indicator |
| 4 | Left turn signal indicator |
| 5 | Headlamp high beam flash |
| 6 | Trip computer information |
| 7 | Autolamps |
| 8 | Low beam |
| 9 | Side lamp |
The left steering column multifunction switch allows the following selections:
- All exterior lamps off
- Side lamps on
- Low beam headlamps on
- Autolamps activation
- Headlamp low/high beam
- Headlamp high beam flash
- Left/right turn signal indicators
- Rear fog lamps
- Trip computer functions.
The multifunction switch positions are all connected via a resistive ladder. The output from the resistive ladder is connected to the SWM which converts the switch operation to LIN bus signals. The signals are received by the BCM/GWM assembly which operates the required exterior lighting selection.
