Side Repeater Lamps

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
G11311089

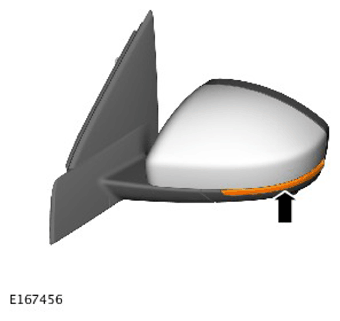

The side repeater lamps are located in the door mirrors.

The side repeater lamps use LEDs. The side repeater lamps have the same functionality as the front and rear turn signal indicator lamps and are operated by the left steering column multifunction switch or by the hazard warning lamp switch. The steering column multifunction switch is only active with power mode 6, the hazard warning lamp switch is active at all times, regardless of the power mode. When active, the side repeater lamps will flash at a frequency cycle of 400 ms on and 400 ms off. If a side repeater lamp fails, the turn signal indicator lamps continue to flash at the normal rate.
