Halogen Headlamp
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

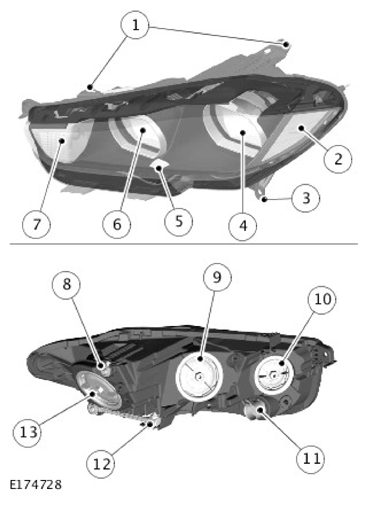

| ITEM | DESCRIPTION |
|---|---|
| 1 | Headlamp mounting bracket |
| 2 | Side marker lamp Light Emitting Diode (LED) - (NAS market vehicles only) |
| 3 | Headlamp mounting bracket |
| 4 | High beam |
| 5 | Daytime Running Lamp (DRL) LED |
| 6 | Low beam |
| 7 | Turn signal indicator |
| 8 | Vertical adjuster |
| 9 | Bulb access cover |
| 10 | Turn signal indicator bulb access cover |
| 11 | Electrical connector |
| 12 | Horizontal adjuster |
| 13 | Bulb access cover |
The halogen headlamp is a self-contained unit located within the headlamp assembly. The unit comprises a reflector, an adaptor ring, the lens and the halogen bulb, which together forms an assembly.
The H3B bulb is located in an integral holder which locates in a keyway to ensure the correct alignment and is secured by rotating to the locked position.
