Front And Rear Height Sensors

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

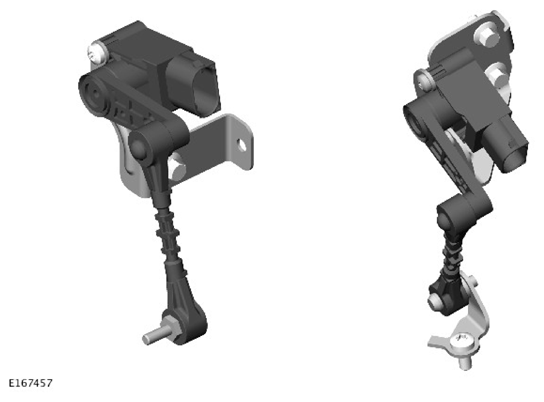

G11311090

The height sensors used by the headlamp leveling system are both located on the right side of the vehicle.

Each sensor has three connections with the Integrated Suspension Control Module (ISCM); power, ground and signal.
