Component Location - Sheet 1 Of 3: Notes

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

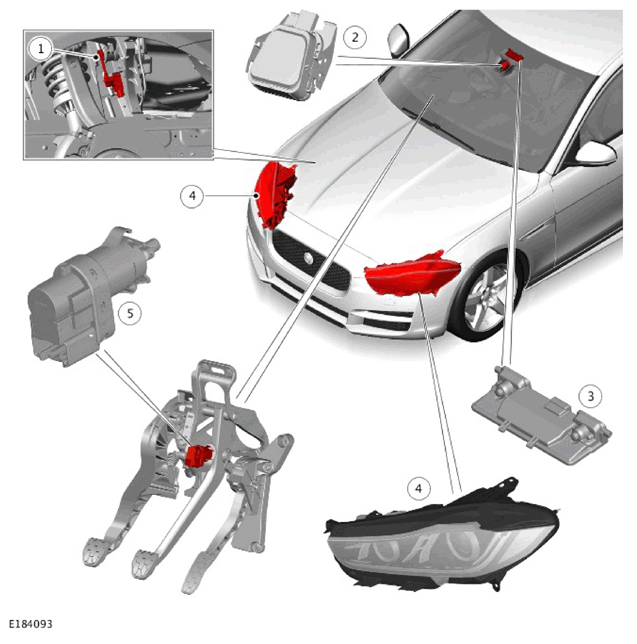

G11311079
ITEM DESCRIPTION
1 Front height sensor (Xenon headlamps only)
2 Rain/light sensor
3 Image Processing Control Module (IPCM)
4 Headlamp assembly
5 Brake pedal switch
