Component Location - Sheet 3 Of 3

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

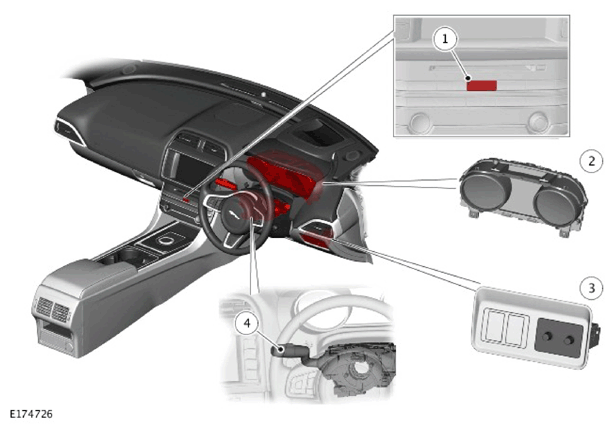

G11311081
ITEM DESCRIPTION
1 Hazard warning lamp switch
2 Instrument Cluster (IC)
3 Auxiliary lighting switch
4 Left steering column multifunction switch
