Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Left illustration shown, right is similar.
  • The ignition must be switched off.
  1. Raise and support the vehicle.
    WARNING: Make sure to support the vehicle with axle stands.
  2. Refer to: Fender Splash Shield .

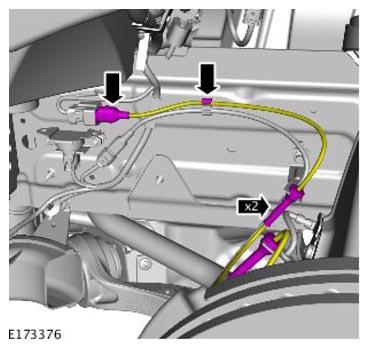

  3. G11308732
  4. G11308733

    Torque Specification: 9 Nm
