Removal And Installation: Installation
-
CAUTION:
- Use only a plastic scraper when removing the sealing material.
- Make sure that the mating faces are clean and free of foreign material.
- Make sure that the Land Rover approved cleaning fluid (Loctite 7063) is used to clean the mating faces.
Using a suitable tool remove the sealing material.
-
CAUTION: Make sure that the Land Rover approved sealant, covers the mating faces of the cylinder block and the oil pan.
Apply RTV sealant (Loctite 5901G or Loctite 5900) in a 2-3mm diameter to the areas shown, and install the engine rear oil seal plate within 7 minutes.
Refer to: TORQUE SPECIFICATIONS .
-
CAUTION: Make sure that the special tool is correctly located.
Install the special tool as indicated.
Special Tool(s): 303-1442
-
NOTE: Install the bolts finger tight.
Install the special tool.
Special Tool(s): 303-1442
-
CAUTION: Do not fully install the component. Maintain a clearance of 8mm, between the rear oil seal plate and the cylinder block, as smearing of the sealant may occur.
Install the new crankshaft rear oil seal plate.
Special Tool(s): 303-1442
Renew Part: Crankshaft rear seal.
Install the bolts and maintain the clearance of 8mm.
Special Tool(s): 303-1442
Remove the special tool.
Special Tool(s): 303-1442
-
CAUTION: Apply pressure to the rear oil seal plate in the sequence shown, when installing the special tool.

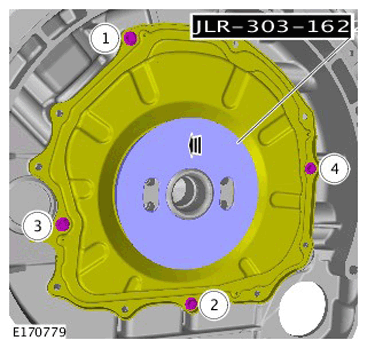

Install the crankshaft rear oil seal plate in the sequence shown.
Special Tool(s): JLR-303-1622
-
NOTE: Tighten the bolts in the indicated sequence.

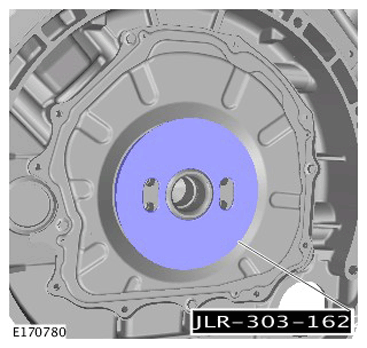

Using the special tool, install the component.
Special Tool(s): JLR-303-1622
Torque Specification: 11 Nm
Remove the special tool.
Special Tool(s): JLR-303-1622
Install the remaining 8 rear oils seal bolts.
Torque Specification: 11 Nm
- Install the flexplate.
Refer to: Flexplate .
- Connect the startup battery ground cable.
Refer to: Battery Disconnect and Connect (General Procedures).
