Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Be prepared to collect escaping coolant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: Lifting .
Partially drain the cooling system.
Refer to: Cooling System Partial Draining and Vacuum Filling .
CAUTION: Be prepared to collect escaping coolant.

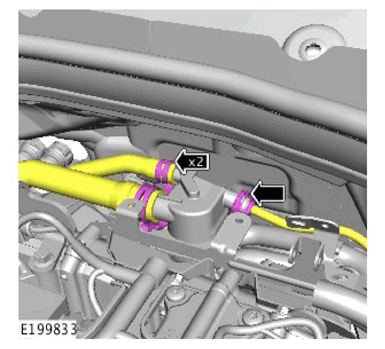

Release the 3 upper coolant hoses.

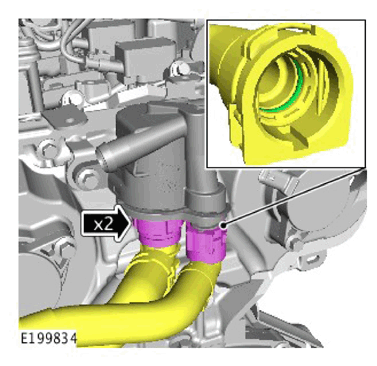

1. Release the 2 lower coolant hoses.
1. Inspect the O-ring seal. Replace if damaged.

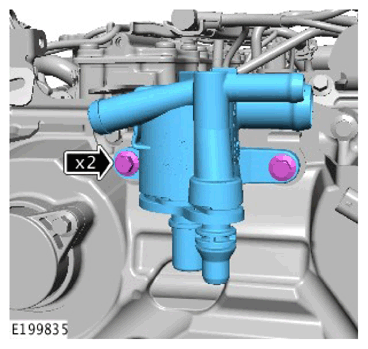

Remove the coolant degas separator.
