Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: Lifting .
Partially drain the cooling system.
Refer to: Cooling System Partial Draining and Vacuum Filling .

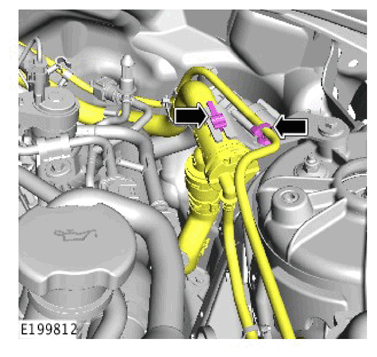

Release the coolant valve assembly.
CAUTION: Be prepared to collect escaping coolant.

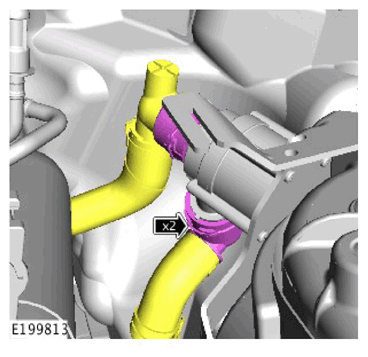

Release the clips and disconnect the 2 coolant hoses.

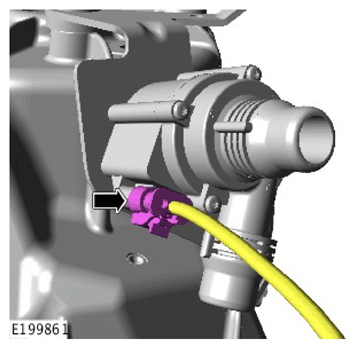

Disconnect the electrical connector.
NOTE: Do not disassemble further if the component is removed for access only.

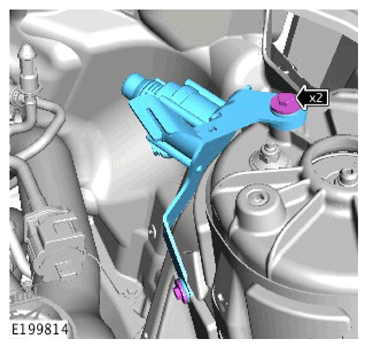

Remove the auxiliary coolant pump mounting bracket.

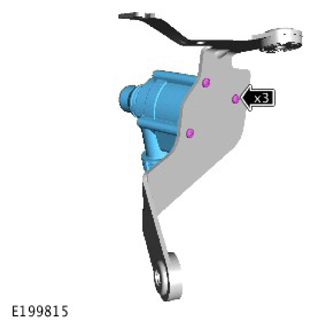

Remove the auxiliary coolant pump.
