Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Raise and support the vehicle using a suitable 2 post lift. Refer to: Lifting .
  2. Remove the engine cover.

    Refer to: Engine Cover - INGENIUM I4 2.0L Diesel .

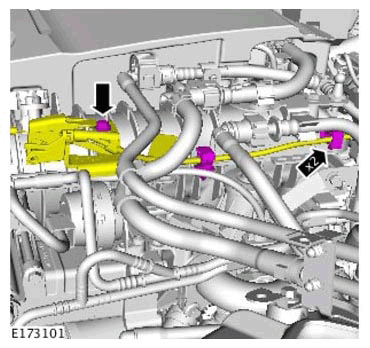

  3. Remove the bolt and release the clips.
    G11314230

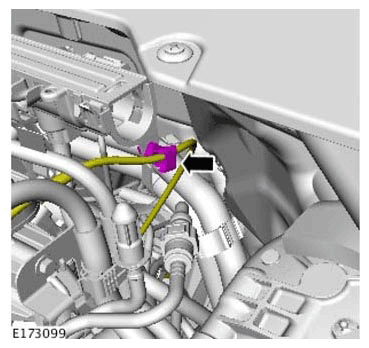

  4. Release the clip.
    G11314231
  5. Remove the air deflector.

    Refer to: Air Deflector .

  6. Remove the bolts and release the lever.
    G11313752

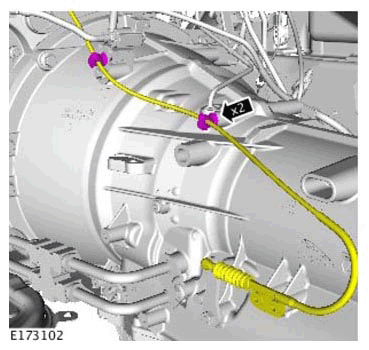

  7. Release the clips.
    G11314233

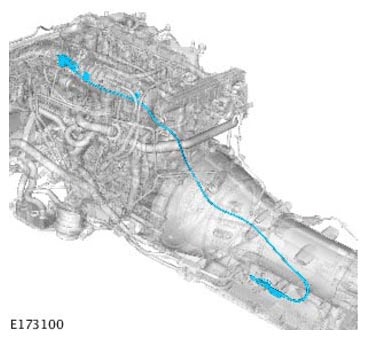

  8. Remove the emergency park position release lever.
    G11314234

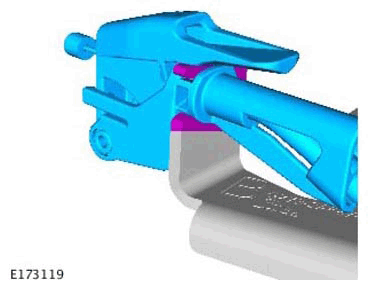

  9. Release clip from the bracket.
    G11314235
