Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.
Some components shown removed for clarity.
Removal steps in this procedure may contain installation details.

Raise and support the vehicle.
WARNING: Make sure to support the vehicle with axle stands.
Remove the wheel and tire.
Refer to: Wheel and Tire .
CAUTION: Discard the nut.

Renew Part: Rear halfshaft nut Quantity: 1.

Torque Specification: 290 Nm
CAUTION: Make sure that the brake hose does not support the full weight of the brake caliper assembly.
- Torque Specification: 28 Nm
Torque Specification: 9 Nm
Using a suitable hydraulic jack, support the lower arm.
Torque Specification:

Stage 1: 40 Nm

Stage 2: 45°
NOTE: Discard the nuts and bolts.
- Remove the upper control arm to knuckle nut and bolt.
  Renew Part: Upper control arm retaining nut and bolt Quantity: 1.

  Torque Specification:

  Stage 1: 60 Nm

  Stage 2: 60°
- Remove the 2 nuts and 2 bolts and remove the integral link.
  Renew Part: Integral link nuts and bolts Quantity: 1.

  Torque Specification:

  Stage 1: 48 Nm

  Stage 2: 60°
Remove and discard the lower control arm to knuckle nut and bolt.

Torque Specification:

Stage 1: 110 Nm

Stage 2: 60°
CAUTION: Do not use a hammer to detach the halfshaft from the hub assembly, failure to follow this instruction may result in damage to the halfshaft.

Special Tool(s): 205-857
CAUTION:
- Be prepared to collect escaping fluids.
- Keep the halfshaft horizontal to avoid damaging the oil seal.
Discard the circlip

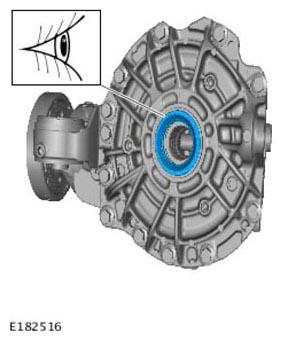

CAUTION: Inspect the seals, replace if damaged.
