Driveshaft To Rear Differential Disconnection (G2152273): Activation

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Make sure all the components are clean and free from corrosion.
  • Support the driveshaft at all times to prevent the damage to the center bearing.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Locate and release the Emergency Park Release (EPR).
    NOTE: If equipped.
    G11305760
  2. Raise and support the vehicle on a suitable 2 post lift. Refer to: Jacking And Lifting .

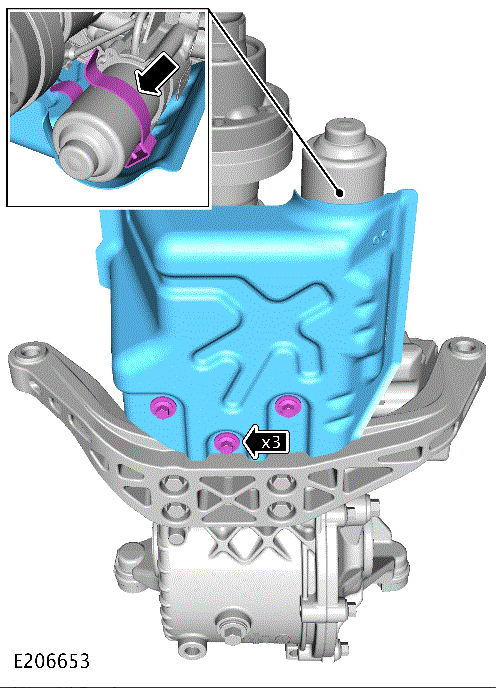

  3. Remove the differential undershield.
    NOTE: If equipped.
    G00567707

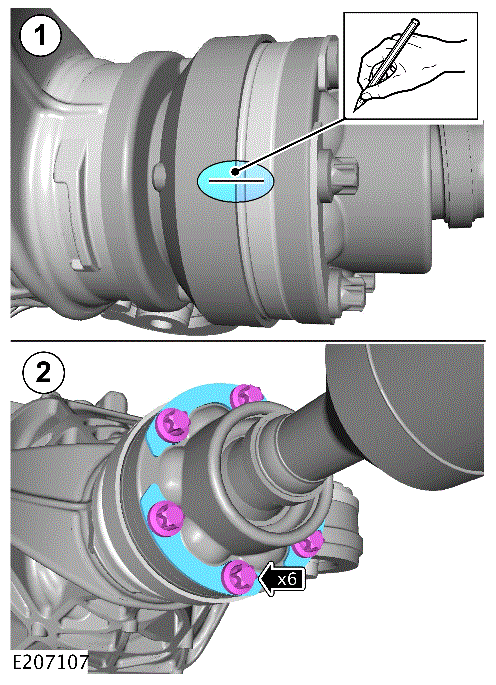

  4. G00567708
    1. Mark the installed position of the driveshaft in relation to the rear differential drive flange.
    2. Remove the driveshaft to rear differential retaining bolts and washers.
  5. Spray the joint mating faces and bolt holes with general purpose penetrating oil.
  6. Using a suitable tool, carefully lever against the 2 slots located on the rear differential drive flange until the driveshaft is disconnected.
    NOTE: Vehicles with 2 slots located on the differential drive flange.

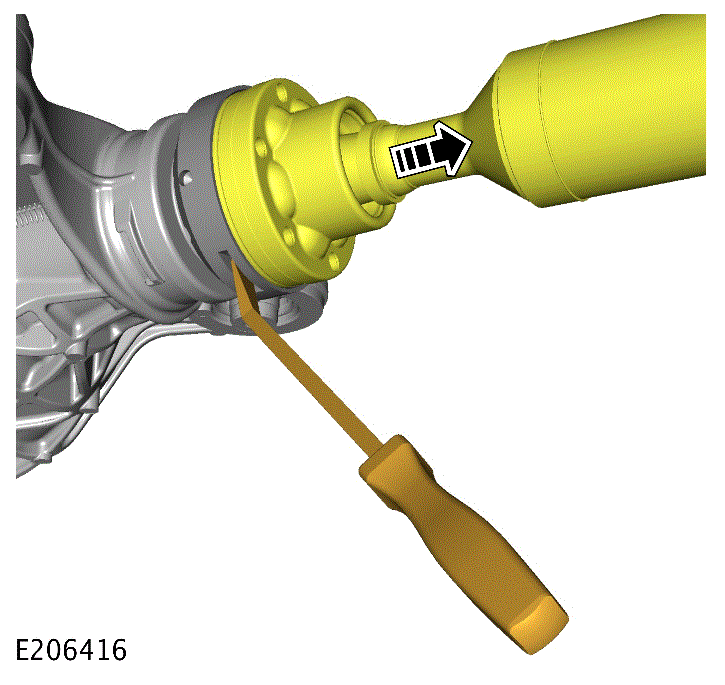

    G00567709

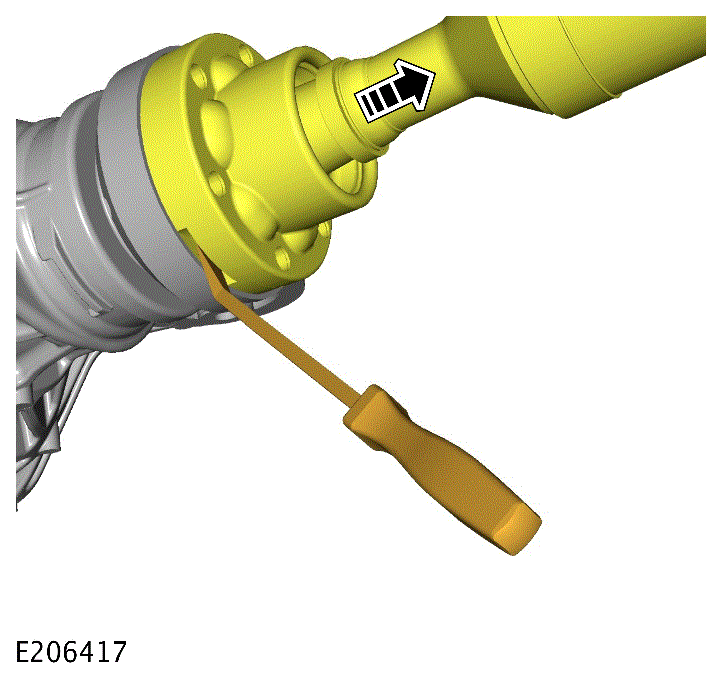

  7. Using a suitable tool, carefully lever against the 2 slots located on the drive shaft joint until the driveshaft is disconnected.
    NOTE: Vehicles with 2 slots located on the driveshaft.
    G00567710

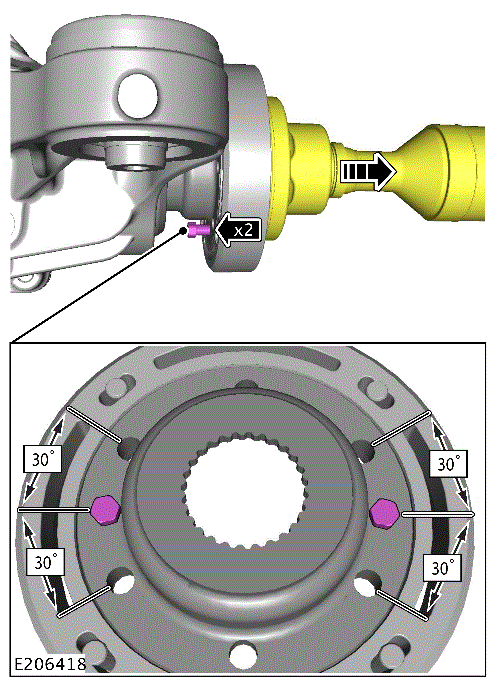

  8. NOTE: Vehicles with 2 extra threaded holes on the differential drive flange.
    G00567711
    • Install 2 M10 x 30 mm flangeless bolts into the 2 extra threaded holes located in the rear of the differential drive flange as shown.
    • Tighten the 2 bolts 1 turn at a time until the driveshaft is disconnected.

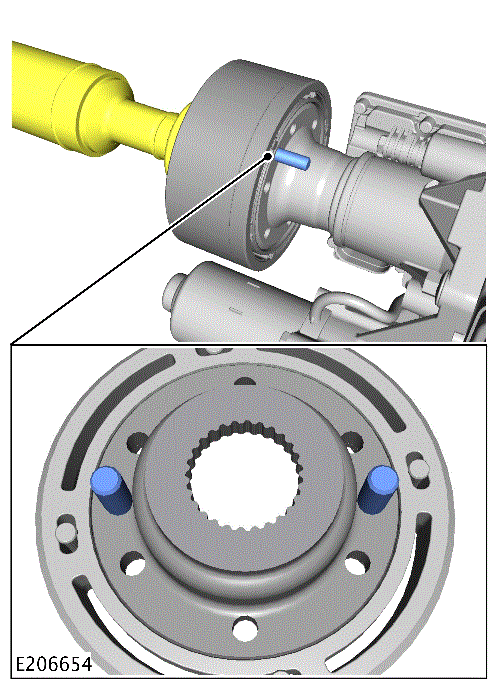

  9. Install 2 suitable 8 mm x 30 mm metal bars into the extra 2 unthreaded holes located in the rear of the differential drive flange as shown.
    NOTE: Vehicles with 2 extra unthreaded holes on the differential drive flange.
    G00567712

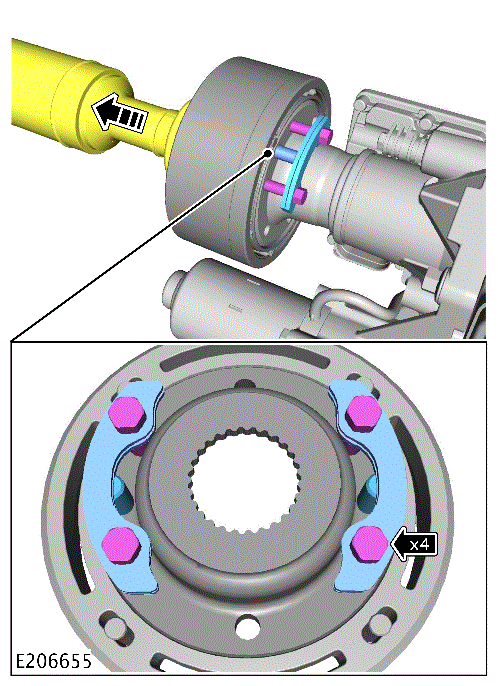

  10. G00567713
    • Install 4 M8 x 30 mm flangeless bolts and 4 driveshaft washers into the rear of the differential drive flange as shown.
    • Tighten the 4 bolts 1 turn at a time until the driveshaft is disconnected.

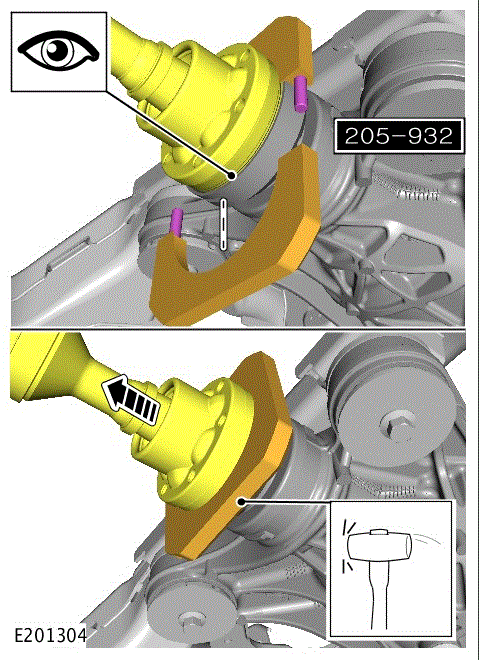

  11. Using the special tool, disconnect the driveshaft.
    NOTE: Vehicles with accessible groove around the driveshaft.
    G00567714

    Special Tool(s): 205-932

  12. Using the special tools, disconnect the driveshaft.
    G00567715

    Special Tool(s): JLR-205-993, 303-1142

  13. Clean and inspect the components.
