General Procedures

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S) DESCRIPTION

G11284024
 205-535
Alignment Tool

All vehicles

  1. Raise and support the vehicle.
    WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    All vehicles

  2. Remove the air deflector.

    For additional information, refer to: Air Deflector .

  3. Remove the engine rear undershield.

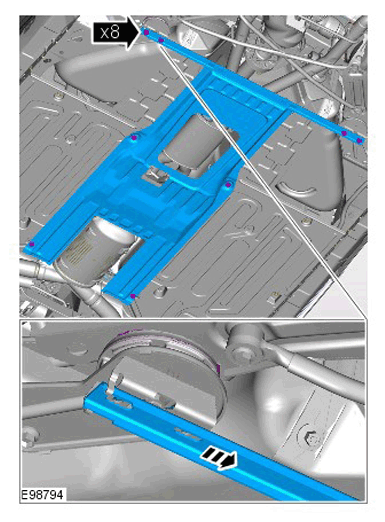

    G11284025
  4. Remove the rear subframe crossbrace.

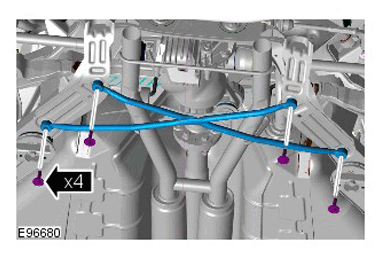

    G11284026

    All except vehicles with diesel engine

  5. Remove the support bracket.

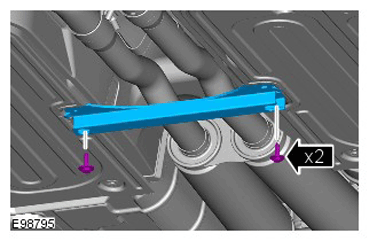

    G11284027
  6. Loosen the retaining nuts.

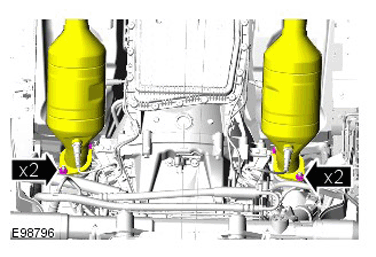

    G11284028

    Vehicles with diesel engine

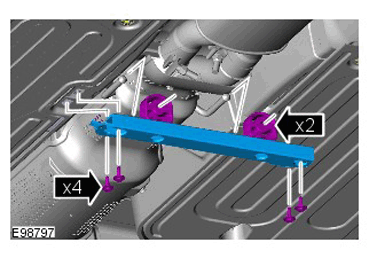

  7. G11284029

    Remove the support bracket.

    • Remove the bolts.
    • Detach the intermediate muffler exhaust hanger insulators.
  8. Loosen the catalytic converter to diesel particulate filter (DPF) retaining clamps.

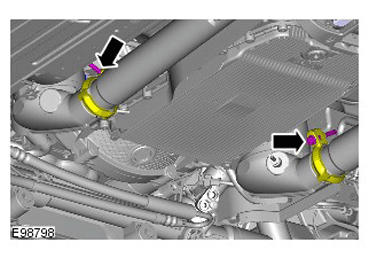

    G11284030

    All vehicles

  9. CAUTION: Make sure that the exhaust system is supported with a suitable transmission stand.

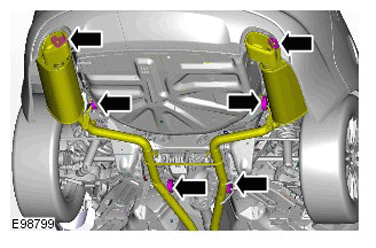

    G11284031

    Lower the exhaust assembly sufficiently to gain access to the driveshaft heat shield.

    • Release the 6 exhaust hangers.
  10. Remove the driveshaft heat shield.

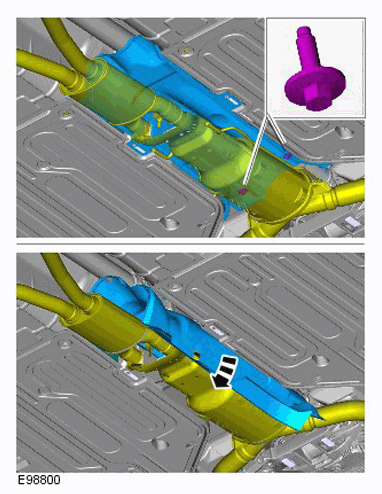

    G11284032

    All vehicles

  11. Using the special tool, align the driveshaft center bearing.
    CAUTION: Make sure that the special tool is correctly located.

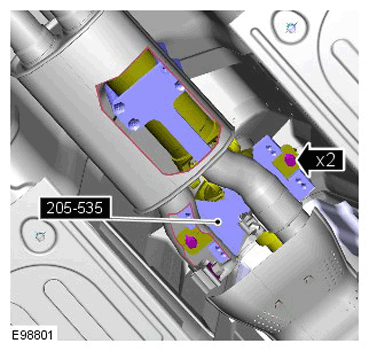

    G11284033

    Torque Specification: 40 Nm.

  12. Install the driveshaft heat shield.

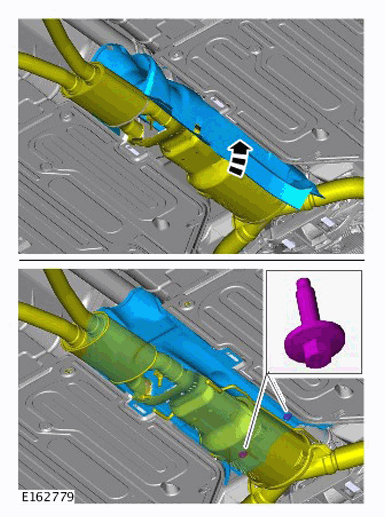

    G11284034

    Torque Specification: 10 Nm.

  13. Attach the exhaust hangers.
    CAUTION: Make sure that the exhaust system is supported with a suitable transmission stand.
    G11284031

    Vehicles with diesel engine

  14. Tighten the catalytic converter to DPF retaining clamps.
    G11284030

    Torque Specification: 11 Nm.

  15. Install the support bracket.
    G11284029
    • Attach the intermediate muffler exhaust hanger insulators.
    • Torque Specification: 10 Nm.

    All except vehicles with diesel engine

  16. Tighten the retaining nuts.
    G11284028
    • Torque Specification: 45 Nm.
  17. Install the support bracket.
    G11284027
    • Torque Specification: 10 Nm.

    All vehicles

  18. Install the rear subframe cross brace.
    G11284026
    • Torque Specification: 62 Nm.
  19. Install the engine rear undershield.

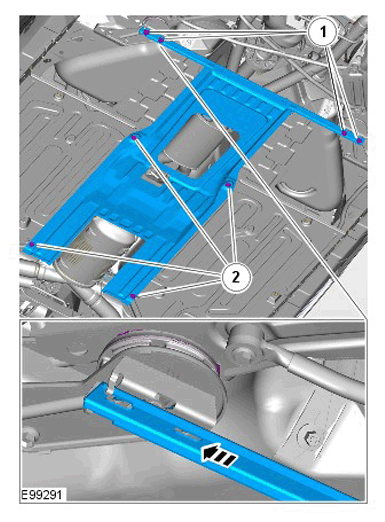

    G11284041
    1. Torque Specification: 30 Nm.
    2. Torque Specification: 10 Nm.
  20. Install the air deflector.

    For additional information, refer to: Air Deflector .
