Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Some components shown removed for clarity.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Removal steps in this procedure may contain installation details.
  1. Raise and support the vehicle.
    WARNING: Make sure to support the vehicle with axle stands.
  2. Refer to: Rear Halfshaft .
  3. G11305826

    Vehicles with light duty differentials.

    Special Tool(s):  308-005, 100-012

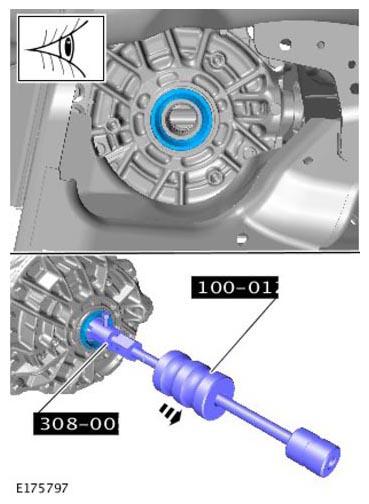

  4. G11305827

    Vehicles with open differentials.

    Special Tool(s): 308-005, 100-012
