Removal And Installation: Installation

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. NOTE: Make sure that all the component mating faces are clean.

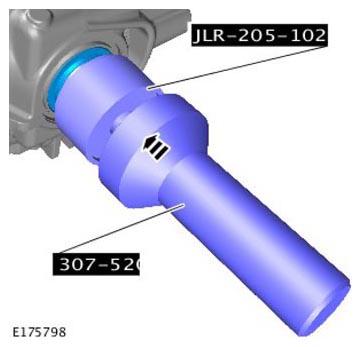

    G11305828

    Vehicles with light duty differentials.

    Special Tool(s): 307-520

  2. NOTE: Make sure that all the component mating faces are clean.

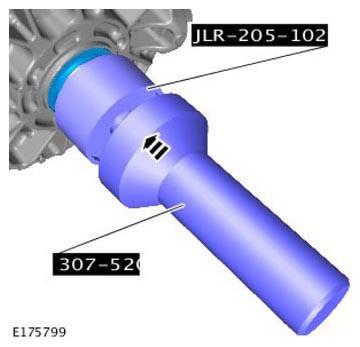

    G11305829

    Vehicles with open differentials.

    Special Tool(s): 307-520

  3. Refer to: Rear Halfshaft .
