Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle on a 2 post ramp.
  2. Drain the rear differential oil.

    Refer to: Differential Draining and Filling - V6 S/C 3.0L Petrol .

  3. Remove the rear driveshaft.

    Refer to: Driveshaft - V6 S/C 3.0L Petrol .

  4. Measure the distance between the top surface of the drive pinion nut and the top surface of the drive pinion shaft.

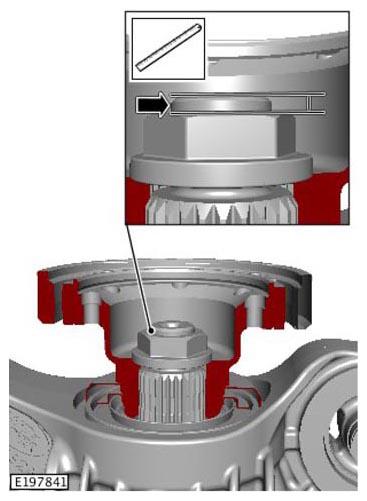

    G11305815

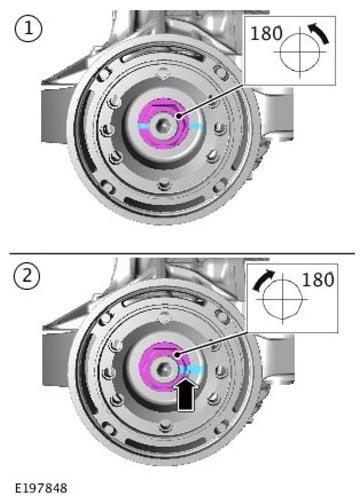

  5. G11305816
    • Accurately scribe a line to mark the drive pinion shaft to the drive pinion nut and pinion flange.
    • Using special tool loosen the nut 180 degrees, then tighten back to the mark and note the torque value.

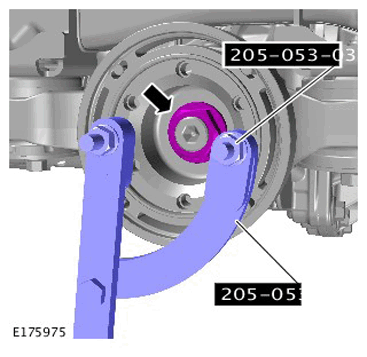

  6. G11284172

    Special Tool(s): 205-053, 205-053-03

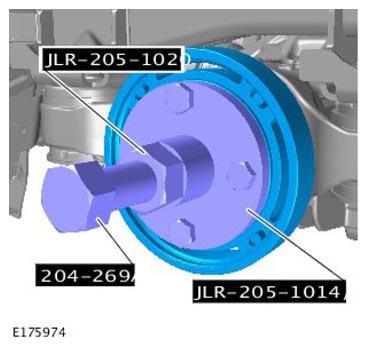

  7. G11305818

    Special Tool(s): 204-269, JLR-205-1020, JLR-205-1014

  8. WARNING: Be prepared to collect escaping fluid.

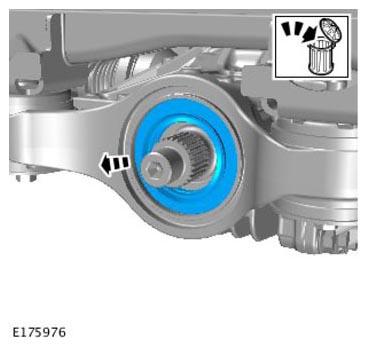

    G11305819
