Removal And Installation: Installation

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

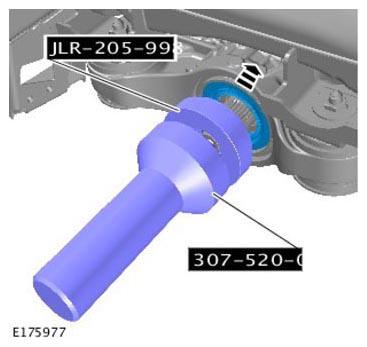

  1. G11305820

    Special Tool(s): JLR-205-998, 307-520

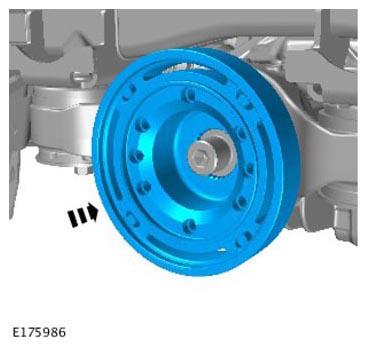

  2. G11305821
  3. CAUTION: Make sure the drive pinion flange has no end float and is free to rotate.
    G11284172

    Special Tool(s): 205-053, 205-053-03

  4. Refer to: Driveshaft - V6 S/C 3.0L Petrol .
  5. Refer to: Differential Draining and Filling - V6 S/C 3.0L Petrol .
