Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
    WARNING: Make sure to support the vehicle with axle stands.
  2. Refer to: Differential Draining and Filling .
  3. Refer to: Driveshaft - Ingenium I4 2.0L Diesel / Driveshaft - Ingenium I4 2.0L Petrol .
  4. WARNING: Make sure to support the vehicle with axle stands.

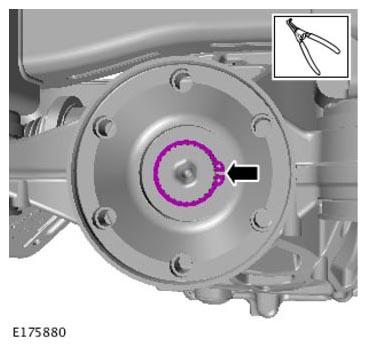

    G11305803

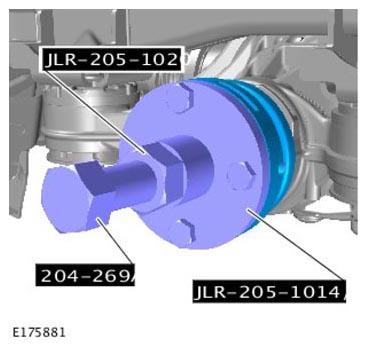

  5. G11305804

    Special Tool(s): 204-269, JLR-205-1020, JLR-205-1014

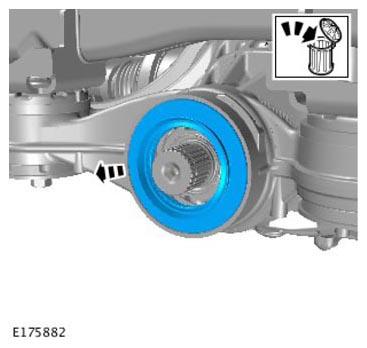

  6. WARNING: Be prepared to collect escaping fluid.
    G11305805
