Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: Lifting .

General Equipment: Two-post lift
Remove the rear differential case.
Refer to: Differential Case - INGENIUM I4 2.0L Diesel .

Refer to: Differential Case - V6 S/C 3.0L Petrol .

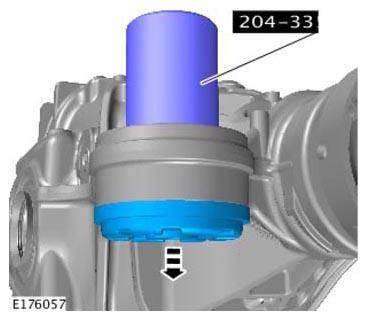

Remove the bush.

Special Tool(s): 204-335
