Removal And Installation: Installation

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the new bush.
    NOTE: Make sure the new bushes are installed in the correct orientation.

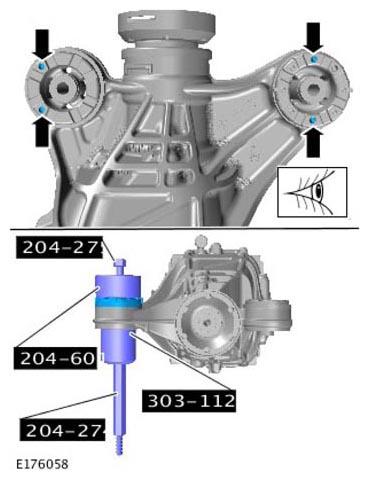

    G11305797

    Special Tool(s): 204-275, 204-601, 303-1121, 204-274

  2. Install the rear differential case.

    Refer to: Differential Case - INGENIUM I4 2.0L Diesel .

    Refer to: Differential Case - V6 S/C 3.0L Petrol .
