Draining / Filling

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
    WARNING: Make sure to support the vehicle with axle stands.
  2. NOTE: Install a new fluid level filler plug.

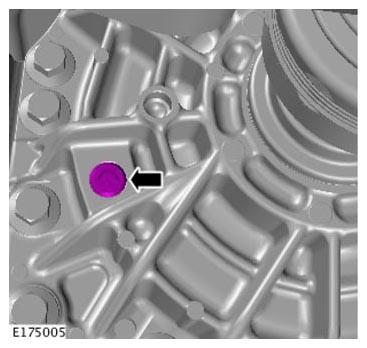

    G11305773

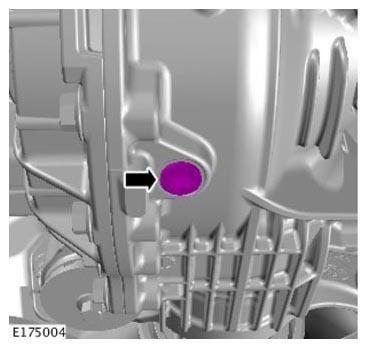

  3. G11305774

    FILLING

  4. G11305774

    Torque Specification: 33 Nm

  5. Refer to: Specifications .
  6. G11305773

    Torque Specification: 33 Nm
