Draining / Filling

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
    WARNING: Make sure to support the vehicle with axle stands.
  2. NOTE: Install a new fluid level filler plug.

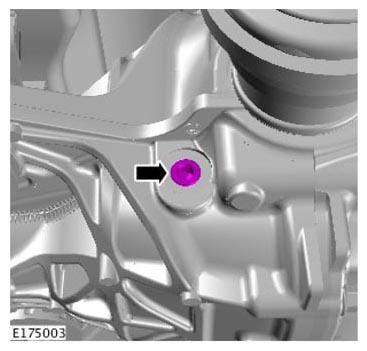

    G11305769

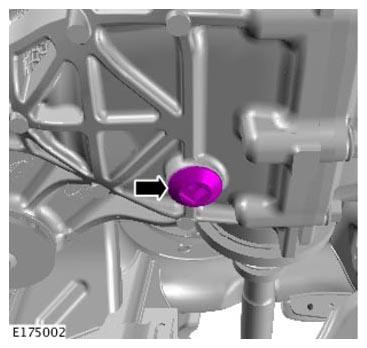

  3. G11305770

    FILLING

  4. G11305770

    Torque Specification: 33 Nm

  5. CAUTION:
    • Do not fill the differential with lubricant up to the filler plug. The filler plug is only used to fill the differential with lubricant, and not to act as a level indicator.
    • Make sure the correct specification and quantity of oil is used.

    Fill the differential with the correct amount of lubricant. Refer to: Specifications .

  6. G11305769

    Torque Specification: 33 Nm
