Removal And Installation: Removal
- Some variation in the illustrations may occur, but the essential information is always correct.
All vehicles
-
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
Raise and support the vehicle.
- Remove the brake pads.
Refer to: Brake Pads
- Disconnect the battery ground cable.
Refer to: Battery Disconnect and Connect
- Refer to: Fuel Tank Draining

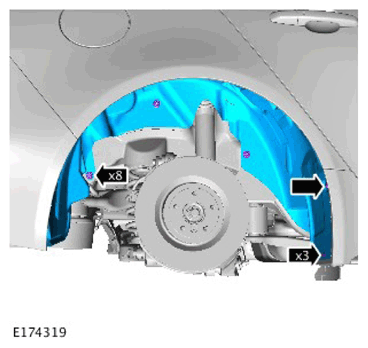

- Refer to: Rear Silencer
Refer to: Rear Silencer
Refer to: Rear Silencer

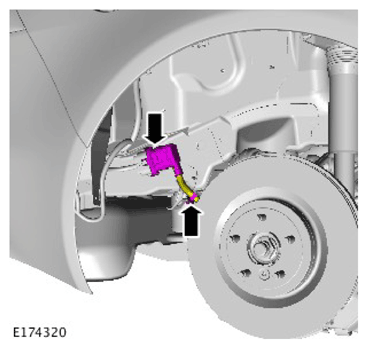

Refer to: Rear Silencer
-

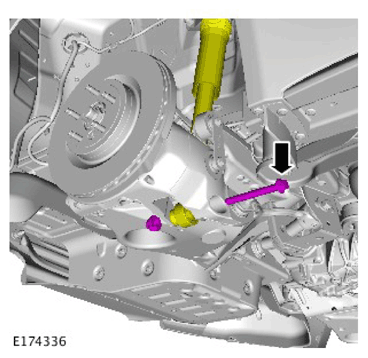

CAUTION: Discard the nut and bolt.NOTE: Repeat the step for the other side.
Torque Specification:
Stage 1: 70 Nm
Stage 2: 120°

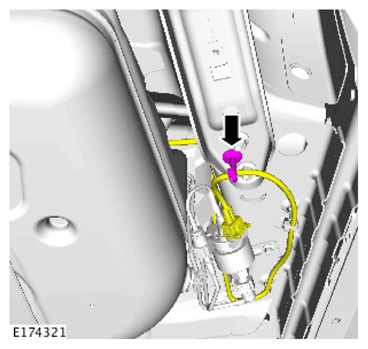

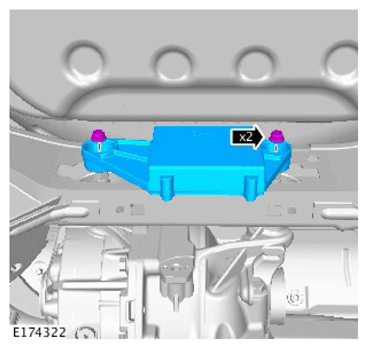

Vehicles with fuel fired heater
All vehicles
Torque Specification: 24 Nm
-
CAUTION: Be prepared to collect escaping fuel.

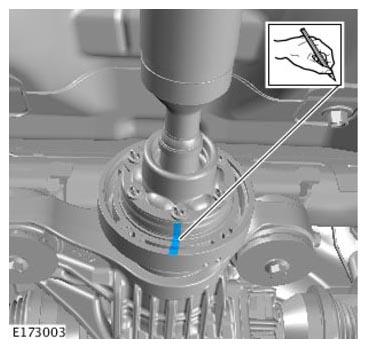

Mark the position of the driveshaft in relation to the rear drive axle flange.
-
CAUTION:
- Discard the bolts.
- Make sure that the driveshaft is supported with suitable retaining straps.
Torque Specification: 48 Nm
Torque Specification: 25 Nm

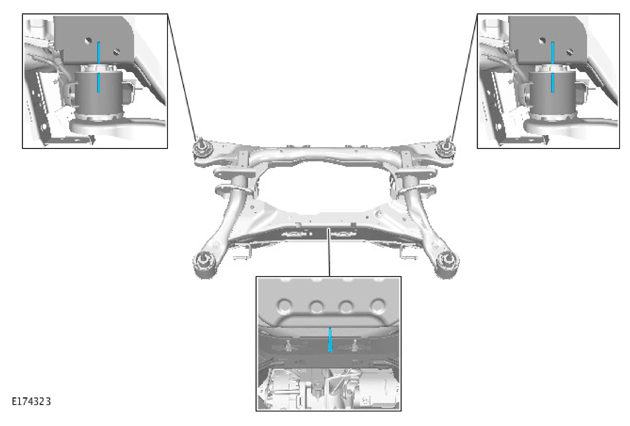

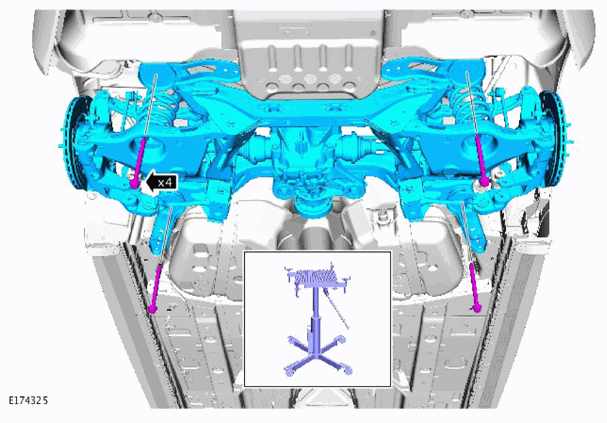

To aid installation, use a straight edge to mark the position of the subframe in relation to the body at the points shown.

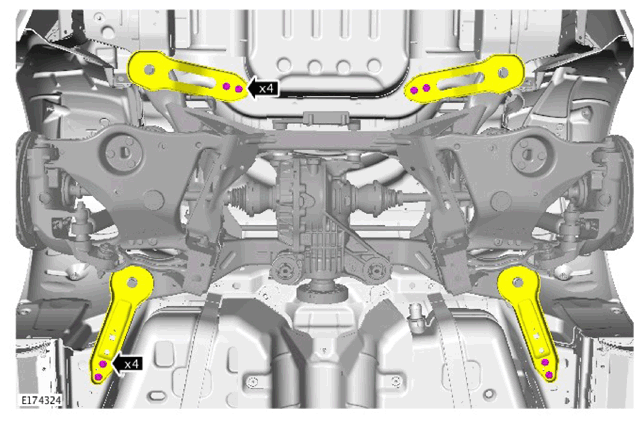

Torque Specification: 60 Nm
-
CAUTION: Discard the bolts.NOTE: Do not disassemble further if the component is removed for access only.
Torque Specification: 170 Nm
-

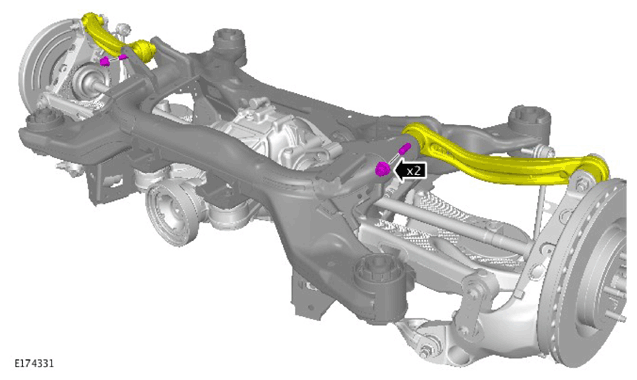

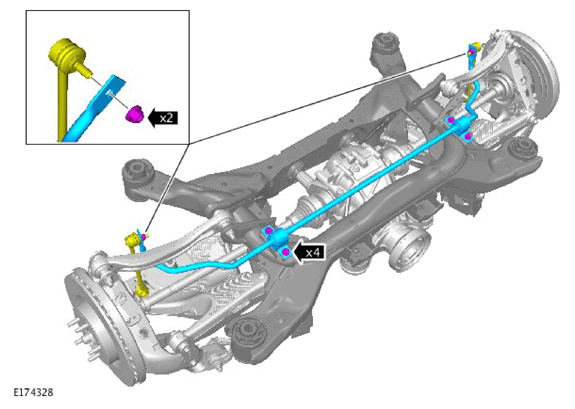

CAUTION: Discard the nuts.
Torque Specification:
Nuts 60 Nm
Bolts 60 Nm
-

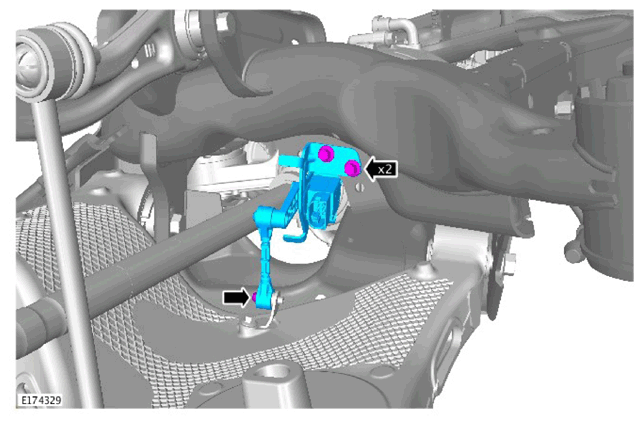

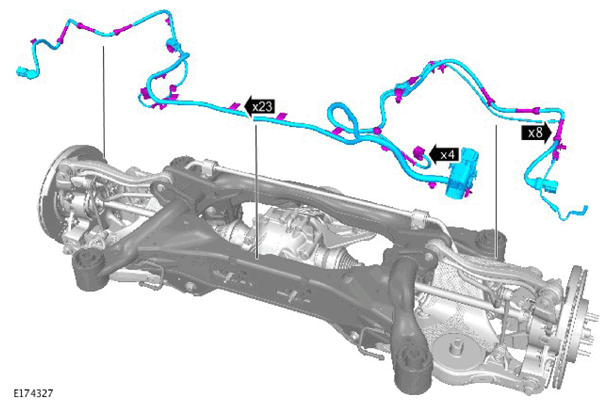

NOTE: Repeat the step for the other side.
Torque Specification: 7 Nm
-

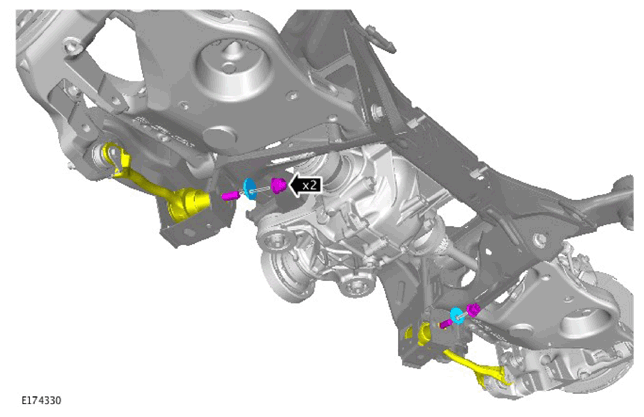

CAUTION: Discard the nuts.
Torque Specification:
Stage 1: 60 Nm
Stage 2: 90°
-
NOTE: Discard the nuts and bolts.
Torque Specification:
Stage 1: 60 Nm
Stage 2: 60°
-

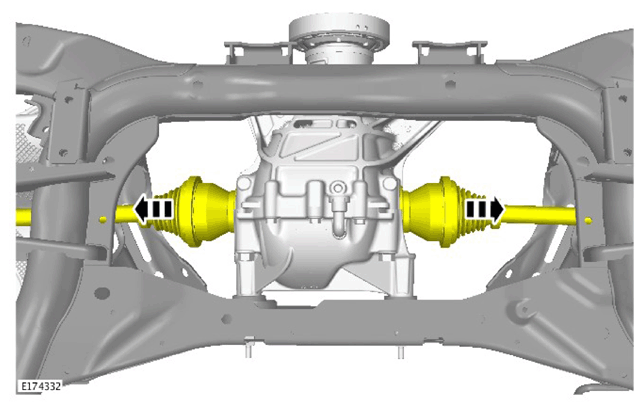

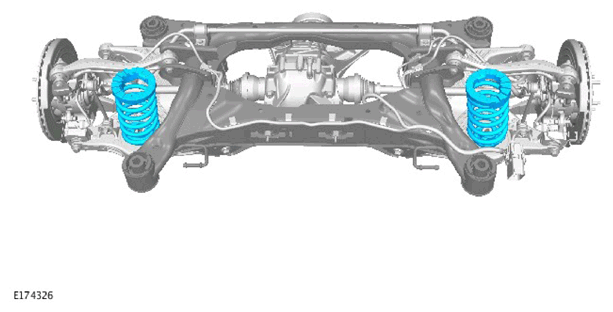

CAUTION: Take extra care not to damage the seal.
-

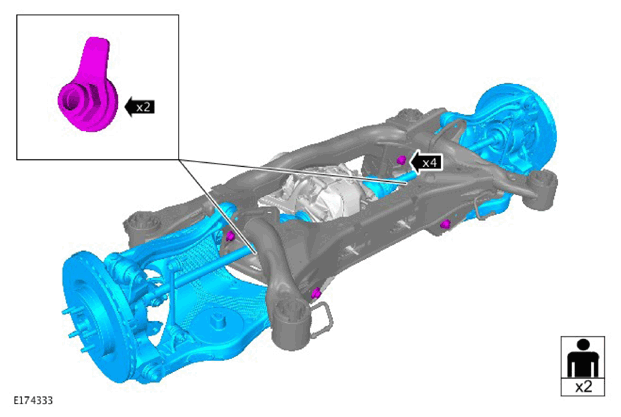

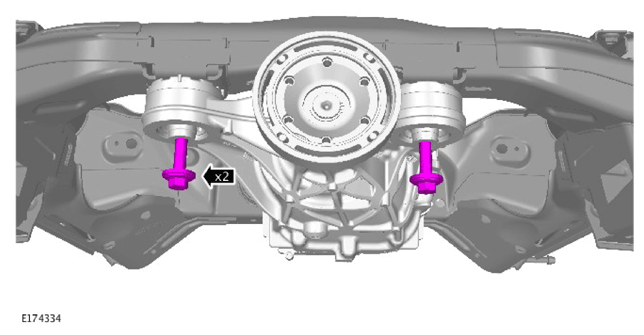

WARNING: The component(s) may be heavy. Take extra care when handling.NOTE: Discard the nuts and bolts.
Torque Specification:
Stage 1: 70 Nm
Stage 2: 240°
-

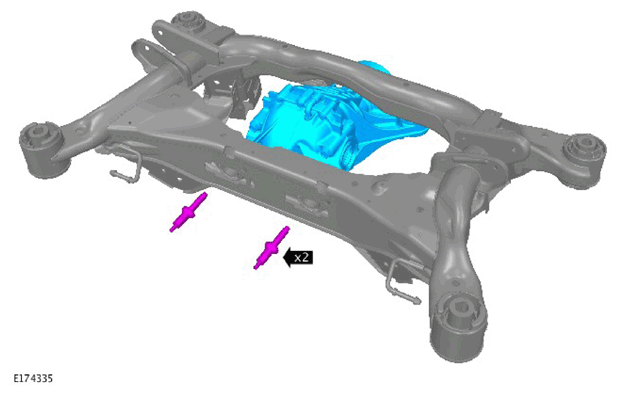

CAUTION: Discard the bolts.
Torque Specification: 110 Nm
-
CAUTION: Discard the bolts.
Torque Specification: 192 Nm
