Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.

Disconnect the battery ground cable.
Refer to: Battery Disconnect and Connect
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.
Refer to: Rear Subframe .

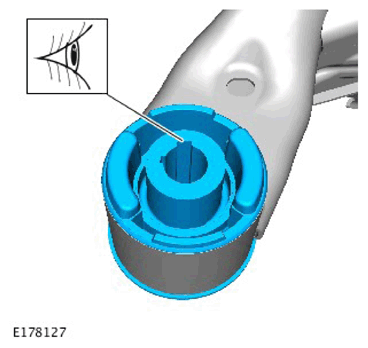

Note the orientation of the slots prior to removing the bush.

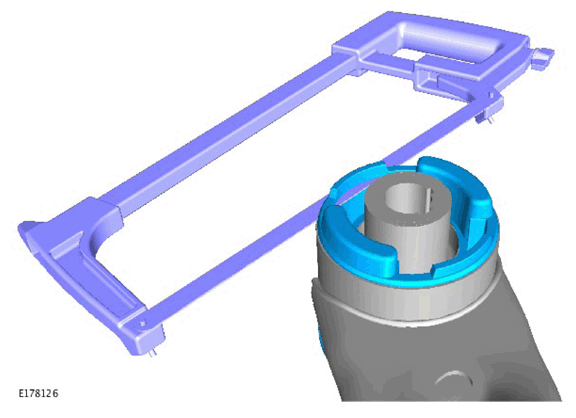

Using a suitable handsaw, carefully remove the lip from the top of the bush.

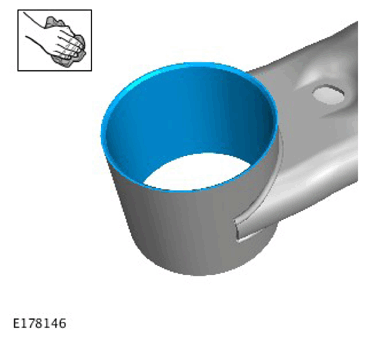

Clean and inspect the components for deterioration.
