Removal And Installation: Installation

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

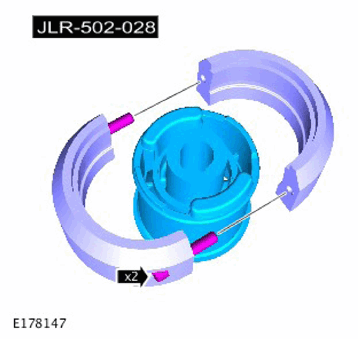

  1. G11313036

    Special Tool(s):  JLR-502-028

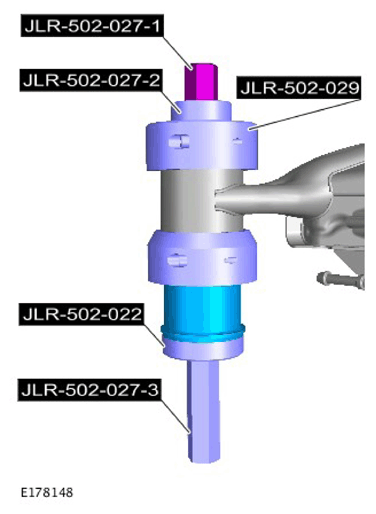

  2. G11313037

    Special Tool(s):  JLR-502-027-3, JLR-502-022, JLR-502-029, JLR-502-027-2, JLR-502-027-1

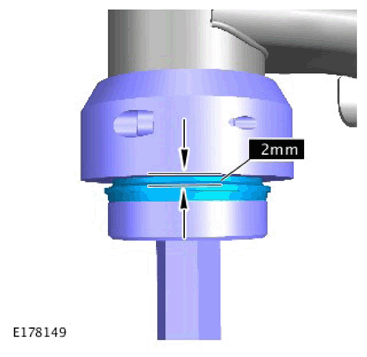

  3. CAUTION: Do not allow the lower edge of the bush to contact the special tool. Leave a 2mm gap.
    G11313038

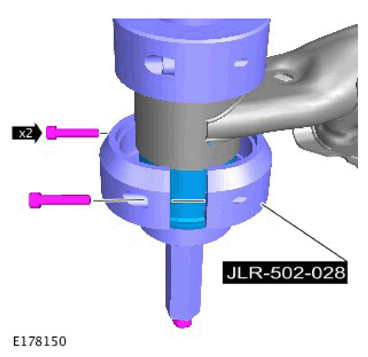

  4. G11313039

    Special Tool(s):  JLR-502-028

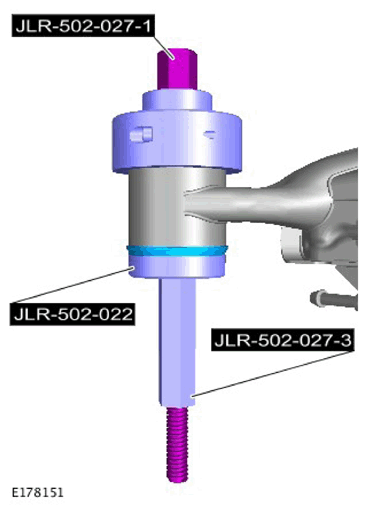

  5. G11313040

    Special Tool(s):  JLR-502-027-1, JLR-502-022, JLR-502-027-3

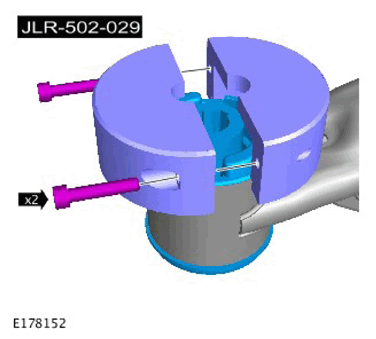

  6. G11313041

    Remove the special tools.

    Special Tool(s):  JLR-502-029

  7. Refer to: Rear Subframe .
  8. Refer to: Battery Disconnect and Connect
