Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.

Vehicles with all wheel drive (AWD)

Remove both front halfshafts.
Refer to: Front Halfshaft

All vehicles
Refer to: Battery Disconnect and Connect
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.
Refer to: Radiator Splash Shield
Refer to: Air Deflector
Refer to: Engine Cover - INGENIUM I4 2.0L Diesel

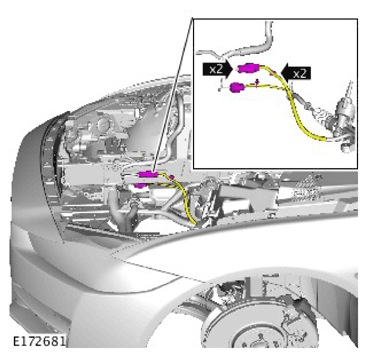

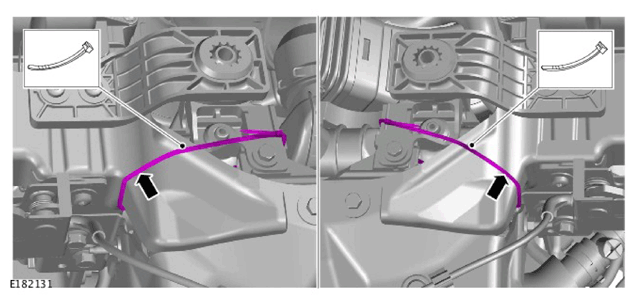

Secure the radiator assembly.
CAUTION:

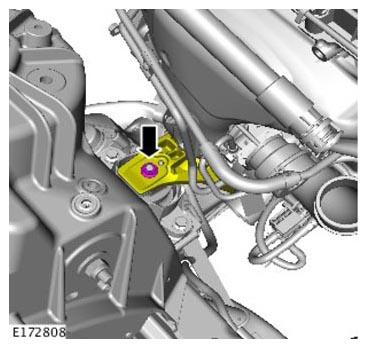

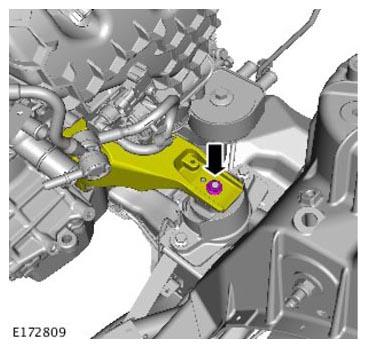

- Support the engine on a jack. The angle may need to be adjusted during this procedure.
- Special Tool(s): 303-021
Torque Specification: 60 Nm
Torque Specification: 60 Nm

Vehicles with automatic transmission

Torque Specification: 9 Nm

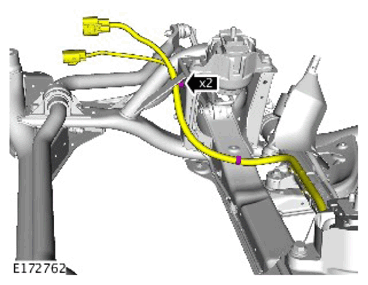

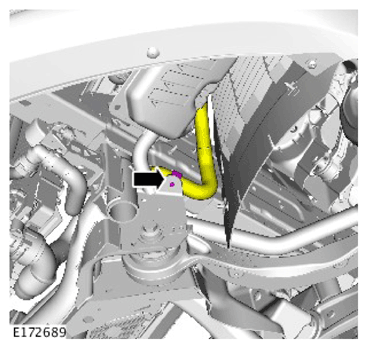

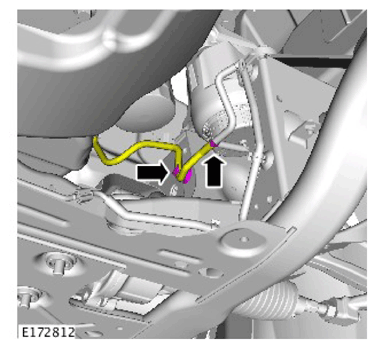

Vehicles with fuel fired booster heater
All vehicles

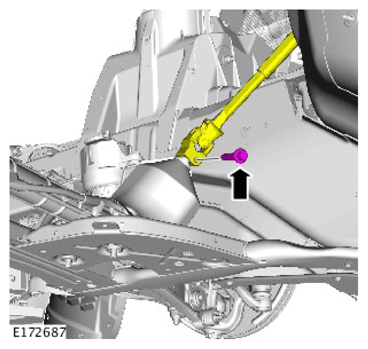

CAUTION: Discard the bolt.

Renew Part: Steering column lower shaft lower bolt

Torque Specification: 30 Nm
NOTE: Repeat the step for the other side.
NOTE: Repeat the step for the other side.

Torque Specification: 133 Nm

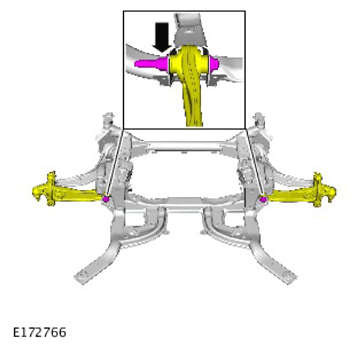

NOTE:
- Loosen but do not fully remove.
- Repeat the step for the other side.
Torque Specification: 185 Nm
NOTE: Repeat the step for the other side.

Special Tool(s): JLR-204-793

Torque Specification: 60 Nm
CAUTION: Discard the nut.

NOTE: Repeat the step for the other side.

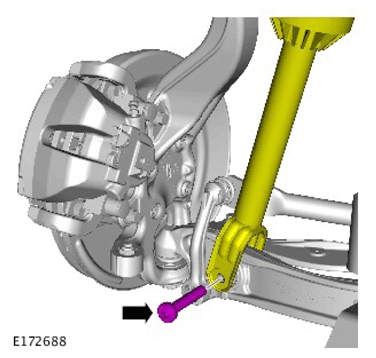

CAUTION: Discard the bolt.

NOTE: Repeat the step for the other side.

Torque Specification: 170 Nm

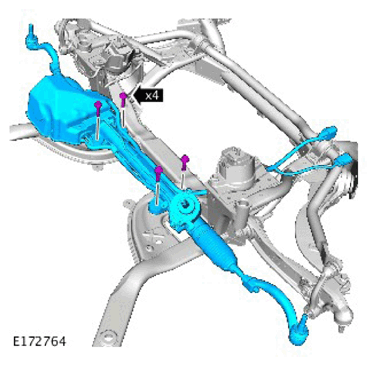

CAUTION: Discard the bolts.

NOTE: Do not disassemble further if the component is removed for access only.

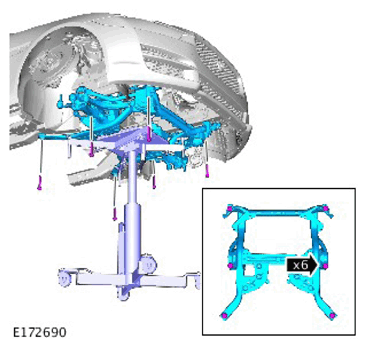

General Equipment: Transmission jack

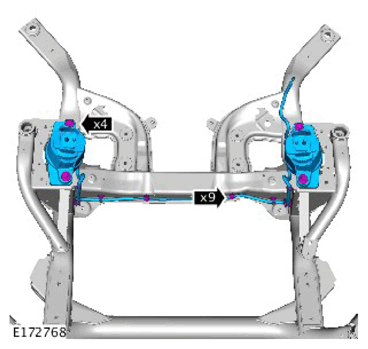

Torque Specification:

Front retaining bolts

Stage 1: 100 Nm

Stage 2: 180°

Centre retaining bolts

Stage 1: 100 Nm

Stage 2: 180°

Rear retaining bolts

Stage 1: 80 Nm

Stage 2: 60°

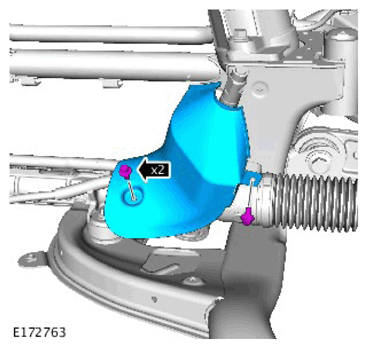

Torque Specification: 9 Nm

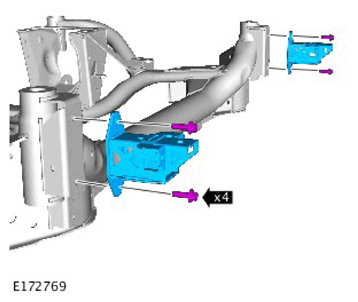

CAUTION: Discard the bolts.

Torque Specification:

Stage 1: 30 Nm

Stage 2: 60°
CAUTION: Discard the nuts.

Torque Specification:

Retaining nuts 48 Nm

Retaining bolts 60 Nm

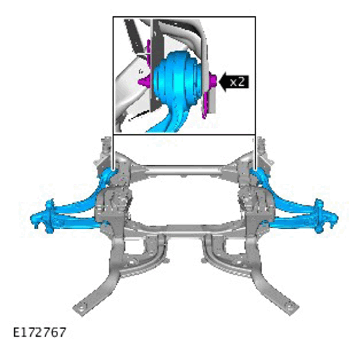

CAUTION: Nuts must be tightened with vehicle at normal ride height.

NOTE: Discard the nuts and bolts.

Torque Specification:

Stage 1: 100 Nm

Stage 2: 180°
CAUTION: Nuts must be tightened with vehicle at normal ride height.

NOTE: Discard the nuts and bolts.

Torque Specification:

Stage 1: 100 Nm

Stage 2: 180°
Torque Specification: 47 Nm
Torque Specification: 9 Nm

Vehicles with automatic transmission
Torque Specification: 9 Nm
