Removal And Installation: Installation

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

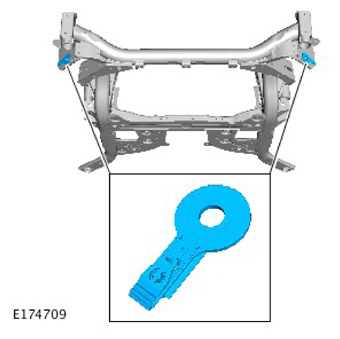

  1. CAUTION: Make sure that new setting clips are installed.
    G11312970

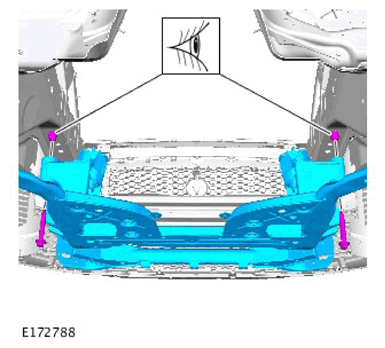

  2. G11312971

    To install, reverse the removal procedure.

  3. Check, and if necessary, adjust the wheel alignment.

    Refer to: Four-Wheel Alignment
