Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some components shown removed for clarity.
  • Removal steps in this procedure may contain installation details.
  1. Raise and support the vehicle.
    WARNING: Make sure to support the vehicle with axle stands.
  2. Refer to: Differential Draining and Filling .
  3. Refer to: Front Driveshaft - AWD .
  4. Refer to: Front Subframe - V6 S/C 3.0L Petrol .
  5. Remove the breather vent.
    NOTE: Do not carry out this step if a new differential is to be installed.
    G11305839

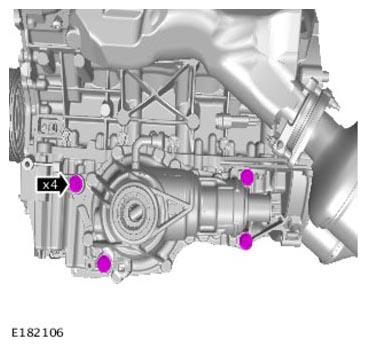

  6. G11305837

    Torque Specification: 115 Nm

  7. Remove and discard the O-ring seal.
    NOTE: Do not carry out this step if a new differential is to be installed.
    G11305838

    Renew Part: Differential pinion seal Quantity: 1.
