INGENIUM I4 2.0L Petrol Engine

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

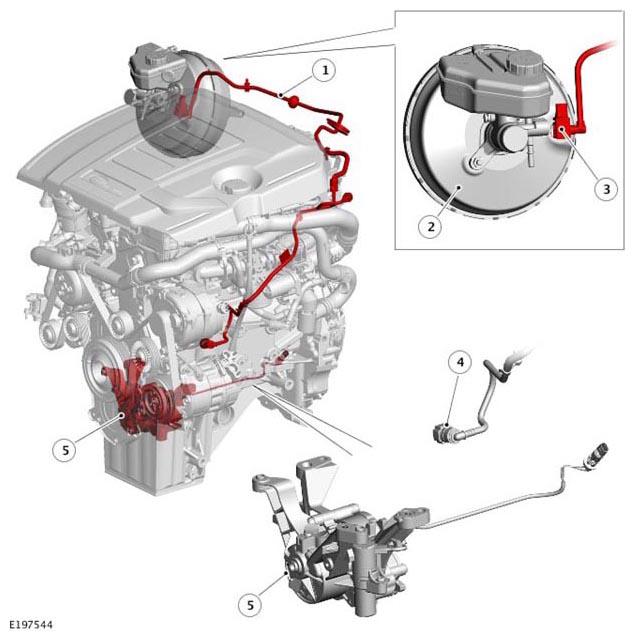

G11308702

INGENIUM I4 2.0L PETROL ENGINE

ITEM DESCRIPTION
1 Vacuum Pipe
2 Brake Booster
3 Brake vacuum sensor
4 Vacuum connector
5 Variable Flow Oil Pump with Integral Vacuum Pump
