Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Raise and support the vehicle.
    WARNING: Make sure to support the vehicle with axle stands.
  2. Refer to: Air Deflector .
  3. Refer to: Engine Oil Draining and Filling .
  4. CAUTION: Make sure that all openings are sealed. Use new blanking caps.
    G11284542
  5. CAUTION: Be prepared to collect escaping oil.
    G11284543

    Torque Specification: 12 Nm

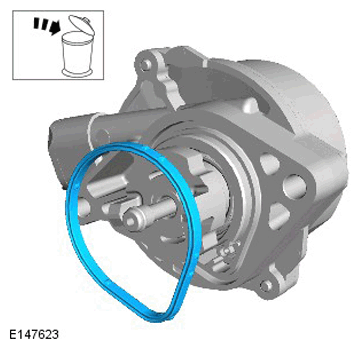

  6. G11284544

    Renew Part: Brake vacuum pump seal Quantity: 1.
