Driver And Passenger Door Modules

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

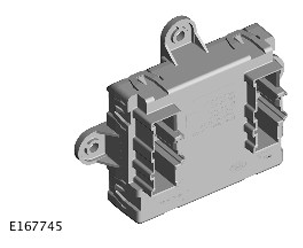

G11288689

Each door module is attached to the closing panel in the related door and connected to the door harness.

The two door modules interpret the signals from the BCM/GWM and the driver door switchpack into appropriate outputs for the related door mirrors. For operation of the various door mirror functions each door module is powered by a permanent battery feed from the CJB (Central Junction Box). The live feed to the mirror power fold motors goes off 5 minutes after the ignition is switched off.
