Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Observe due care when working near a hot exhaust system.
NOTE:
  • Some components shown removed for clarity.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Removal steps in this procedure may contain installation details.
  1. Raise and support the vehicle.
    WARNING: Make sure to support the vehicle with axle stands.
  2. G11308453

    Torque Specification: 7 Nm

  3. G11308454

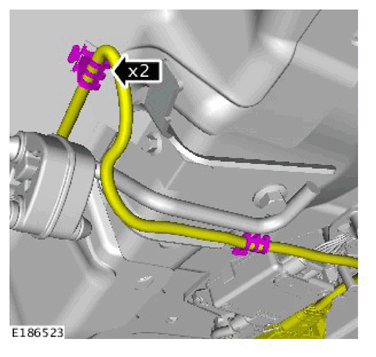

  4. G11308455
  5. NOTE: If the original sensor is to be installed, apply lubricant meeting specification ESE-M12A4-A to the thread of the sensor.
    G11308456

    Torque Specification: 48 Nm
