Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Observe due care when working near a hot exhaust system.
CAUTION:
  • The post selective catalyst reduction NOx sensor and module are a single component and cannot be serviced separately. Do not attempt to disconnect the harness from the module, or damage to the components will occur.
  • Removal steps in this procedure contains installation details.
  1. Raise and support the vehicle.
    WARNING: Make sure to support the vehicle with axle stands.
  2. Refer to: Selective Catalyst Reduction Catalytic Converter .
  3. CAUTION: Make sure that the mating face is clean and free of foreign material.

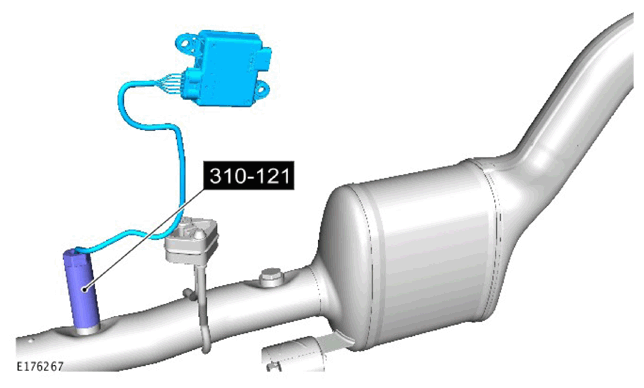

    G11308452

    Special Tool(s):  310-121

    Torque Specification:

    Vehicles without diesel particulate filter 48 Nm

    Vehicles with diesel particulate filter - without diesel exhaust fluid 48 Nm

    Vehicles with diesel particulate filter - with diesel exhaust fluid 60 Nm
