Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Observe due care when working near a hot exhaust system.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Engine shown removed for clarity.
  1. Refer to: Engine Cover - INGENIUM I4 2.0L Diesel .

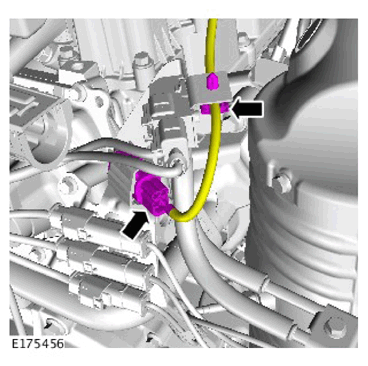

  2. G11308425
  3. CAUTION:
    • Before disconnecting or removing the components, make sure the area around the joint faces and connections are clean. Plug open connections to prevent contamination.
    • Make sure that the mating faces are clean and free of foreign material.

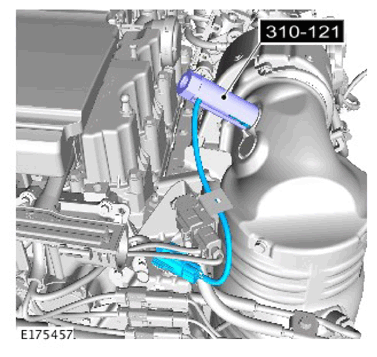

    G11308426
