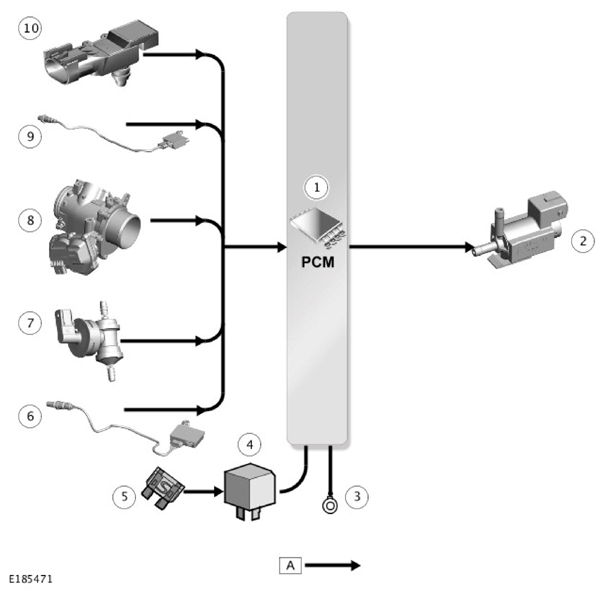

Control Diagram - Sheet 7 Of 7
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = HARD WIRED.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Active engine mount solenoid |
| 3 | Ground |
| 4 | Powertrain Control Module (PCM) relay - located in Engine Junction Box 2 (EJB 2) |
| 5 | Power supply |
| 6 | Pre Selective Catalyst Reduction (SCR) NOx sensor and module - NAS market vehicles only |
| 7 | Brake vacuum switch |
| 8 | Low Pressure (LP) Exhaust Gas Recirculation (EGR) pressure sensor |
| 9 | Post Selective Catalyst Reduction (SCR) soot sensor and module - NAS market vehicles only |
| 10 | Crankcase pressure sensor |
