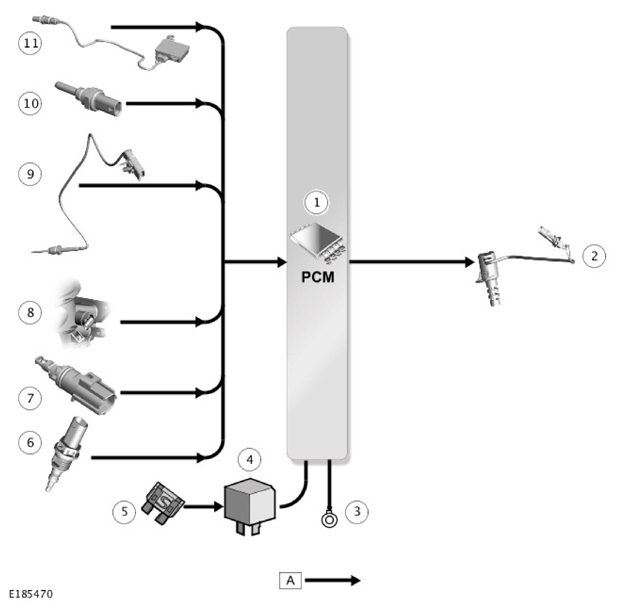

Control Diagram - Sheet 6 Of 7
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = HARD WIRED.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Oil pressure control solenoid |
| 3 | Ground |
| 4 | Powertrain Control Module (PCM) relay - located in Engine Junction Box 2 (EJB 2) |
| 5 | Power supply |
| 6 | Charge air temperature sensor - High Pressure (HP) Exhaust Gas Recirculation (EGR) cooler outlet |
| 7 | Charge air cooler temperature sensor |
| 8 | Engine Coolant Temperature (ECT) sensor - Electric thermostat housing |
| 9 | Exhaust gas temperature sensor - post catalytic converter |
| 10 | Cylinder block temperature sensor |
| 11 | Post Selective Catalyst Reduction (SCR) NOx sensor and module - EU6 and NAS market vehicles only |
