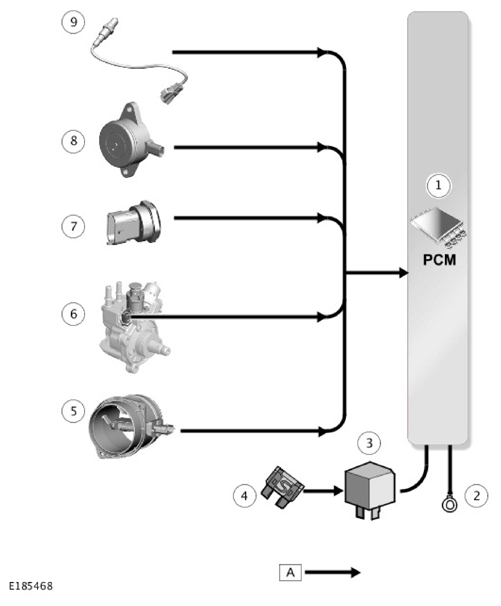

Control Diagram - Sheet 4 Of 7
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = HARD WIRED.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Ground |
| 3 | Powertrain Control Module (PCM) Relay - located in Engine Junction Box 2 (EJB 2) |
| 4 | Power supply |
| 5 | Electric throttle |
| 6 | Fuel temperature sensor |
| 7 | Fuel rail pressure sensor |
| 8 | Variable Camshaft Timing (VCT) solenoid |
| 9 | Heated Oxygen Sensor (HO2S) |

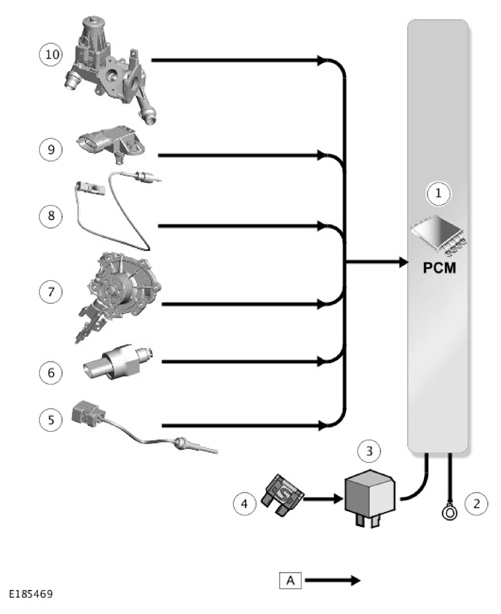

CONTROL DIAGRAM - SHEET 5 OF 7
A = HARD WIRED.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Ground |
| 3 | Powertrain Control Module (PCM) relay - located in Engine Junction Box 2 (EJB 2) |
| 4 | Power supply |
| 5 | Cylinder head temperature sensor |
| 6 | Oil pressure and temperature sensor |
| 7 | Variable coolant pump |
| 8 | Exhaust Gas Recirculation (EGR) exhaust gas temperature sensor - pre catalytic converter |
| 9 | Manifold Absolute Pressure and Temperature (MAPT) sensor |
| 10 | High Pressure (HP) Exhaust Gas Recirculation (EGR) valve motor |
