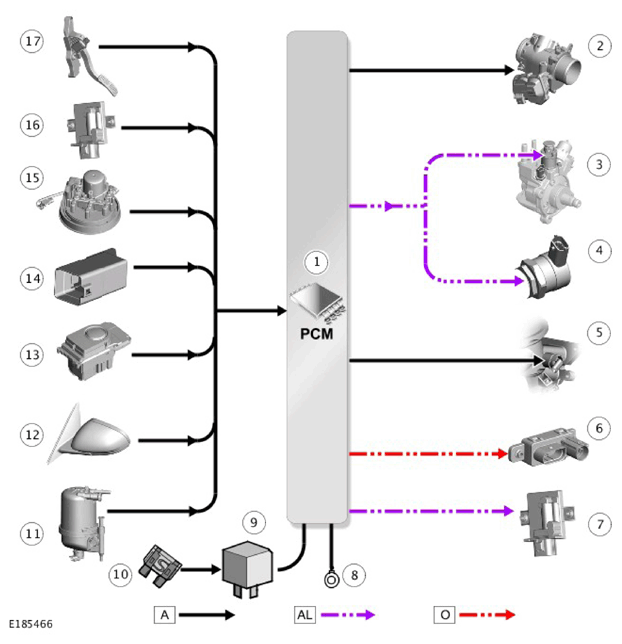

Control Diagram - Sheet 2 Of 7
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = HARD WIRED; AL = PULSE WIDTH MODULATION (PWM); O = LOCAL INTERCONNECT NETWORK (LIN).
| ITEM | DESCRIPTION |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Low Pressure (LP) Exhaust Gas Recirculation (EGR) valve motor |
| 3 | Fuel metering valve |
| 4 | Fuel rail pressure control valve |
| 5 | Electric thermostat |
| 6 | Glow plug control module |
| 7 | Fuel Pump Driver Module (FPDM) |
| 8 | Ground |
| 9 | Powertrain Control Module (PCM) relay - located in Engine Junction Box 2 (EJB 2) |
| 10 | Power supply |
| 11 | Water In Fuel (WIF) sensor |
| 12 | Ambient Air Temperature (AAT) sensor |
| 13 | Transmission Control Switch (TCS) - Automatic transmission only |
| 14 | Diesel Exhaust fluid (DEF) heater control unit |
| 15 | Diesel Exhaust fluid (DEF) tank module |
| 16 | Fuel Pump Driver Module (FPDM) |
| 17 | Accelerator Pedal Position (APP) sensor |
