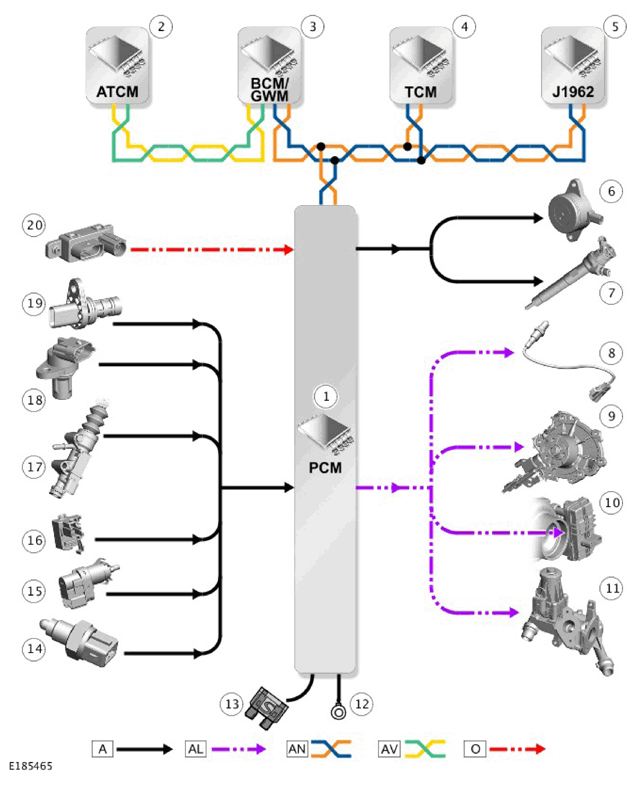

Control Diagram - Sheet 1 Of 7
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = HARD WIRED; AL = PULSE WIDTH MODULATION (PWM); AN = HIGH SPEED (HS) CAN POWERTRAIN SYSTEMS BUS; AV = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) COMFORT SYSTEMS BUS; O = LOCAL INTERCONNECT NETWORK (LIN).
| ITEM | DESCRIPTION |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Air Temperature Control Module (ATCM) |
| 3 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 4 | Transmission Control Module (TCM) - Automatic transmission only |
| 5 | Diagnostic connector (J1962) |
| 6 | Variable Camshaft Timing (VCT) solenoid |
| 7 | Fuel injector (4 off) |
| 8 | Heated Oxygen Sensor (HO2S) |
| 9 | Variable coolant pump |
| 10 | Variable Geometry Turbocharger (VGT) vane actuator |
| 11 | High Pressure (HP) Exhaust Gas Recirculation (EGR) valve motor |
| 12 | Ground |
| 13 | Power supply |
| 14 | Reverse switch - Manual transmission only |
| 15 | Brake pedal switch |
| 16 | Clutch Bottom Of Travel (BOT) switch - Manual transmission only |
| 17 | Clutch pedal position sensor - Manual transmission only |
| 18 | Crankshaft Position (CKP) sensor |
| 19 | Camshaft Position (CMP) sensor |
| 20 | Glow plug control module |
