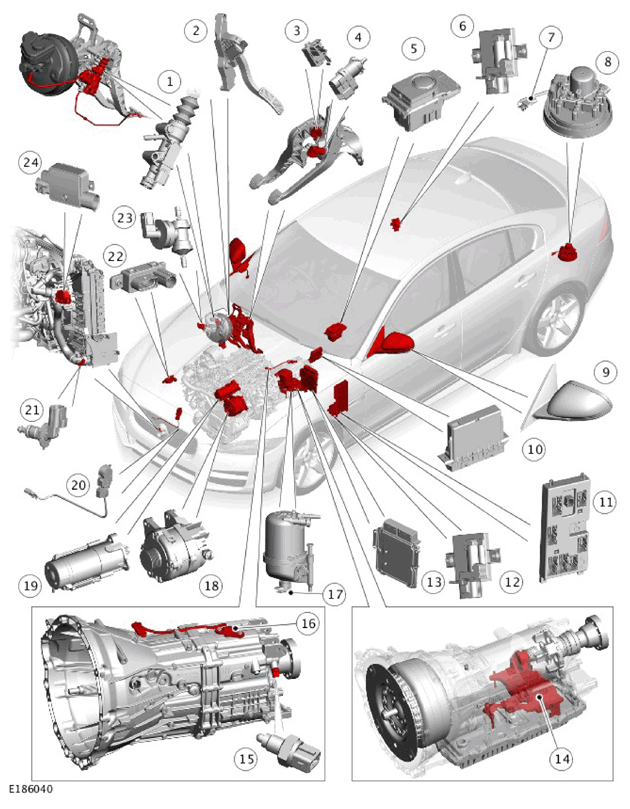

Component Location
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Clutch pedal position sensor - Manual transmission only |
| 2 | Accelerator Pedal Position (APP) sensor |
| 3 | Clutch Bottom of Travel (BOT) switch - Manual transmission only |
| 4 | Brake pedal switch |
| 5 | Transmission Control Switch (TCS) - Automatic transmission only |
| 6 | Fuel Pump Driver Module (FPDM) - EU6 and NAS market vehicles only |
| 7 | Diesel Exhaust Fluid (DEF) heater control unit |
| 8 | Diesel Exhaust Fluid (DEF) tank module |
| 9 | Ambient Air Temperature (AAT) sensor - located in left door mirror |
| 10 | Automatic Temperature Control Module (ATCM) |
| 11 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 12 | Fuel Pump Driver Module (FPDM) - EU4 and EU5 market vehicles only |
| 13 | Powertrain Control Module (PCM) |
| 14 | Transmission Control Module (TCM) - Automatic transmission only |
| 15 | Reverse switch - Manual transmission only |
| 16 | Gear selector position sensor - Manual transmission only |
| 17 | Water In Fuel (WIF) sensor |
| 18 | Generator |
| 19 | Starter motor |
| 20 | Active grille air shutter motor |
| 21 | Radiator outlet temperature sensor |
| 22 | Glow plug control module |
| 23 | Brake vacuum switch |
| 24 | Engine cooling fan control module |
