Component Location - NAS - Sheet 2 Of 2
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

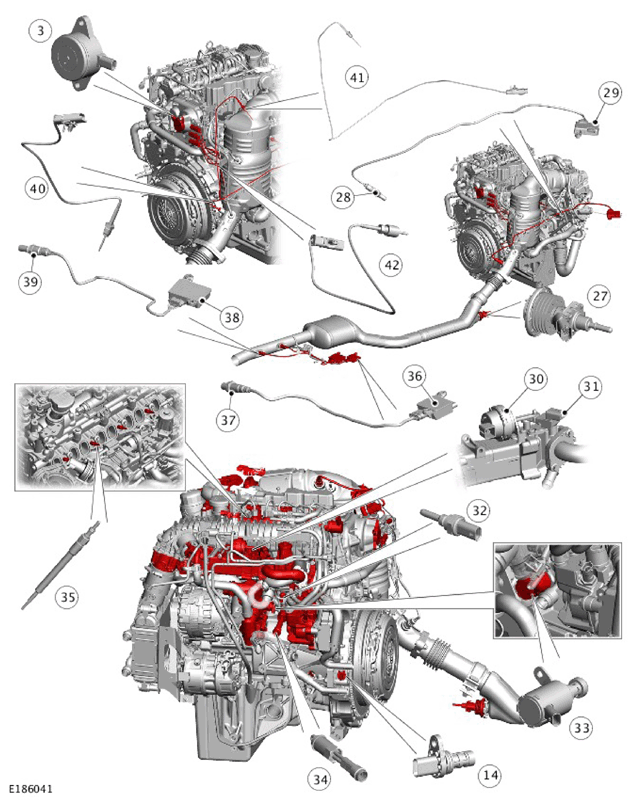

| ITEM | DESCRIPTION |
|---|---|
| 1 | Differential pressure sensor - Diesel Particulate Filter (DPF) |
| 2 | Heated Oxygen Sensor (HO2S) |
| 3 | Variable Camshaft Timing (VCT) solenoid |
| 4 | Crankcase pressure sensor |
| 5 | Manifold Absolute Pressure and Temperature (MAPT) sensor |
| 6 | Mass Air Flow and Temperature (MAFT) sensor |
| 7 | Electric throttle |
| 8 | Low Pressure (LP) Exhaust Gas Recirculation (EGR) valve and Exhaust Gas Recirculation (EGR) pressure sensor |
| 9 | Fuel injector (4 off) |
| 10 | Fuel rail pressure control valve |
| 11 | High Pressure (HP) Exhaust Gas Recirculation (EGR) valve |
| 12 | Fuel metering valve |
| 13 | Fuel pressure control valve |
| 14 | Crankshaft Position (CKP) sensor |
| 15 | Oil pressure control solenoid electrical connector |
| 16 | Electric thermostat and Engine Coolant Temperature (ECT) sensor |
| 17 | Charge air temperature sensor - Exhaust Gas Recirculation (EGR) cooler outlet |
| 18 | Charge air cooler temperature sensor |
| 19 | Cylinder head temperature sensor |
| 20 | Variable coolant pump |
| 21 | Oil pressure and temperature sensor |
| 22 | Fuel rail pressure sensor |
| 23 | Camshaft Position (CMP) sensor |
| 24 | Differential pressure sensor Low Pressure (LP) Exhaust Gas Recirculation (EGR) |
| 25 | Variable Geometry Turbocharger (VGT) vane actuator |
| 26 | Exhaust gas temperature sensor - pre catalytic converter |
| 27 | Diesel Exhaust Fluid (DEF) injector |
| 28 | Pre Selective Catalyst Reduction (SCR) NOx sensor |
| 29 | Pre Selective Catalyst Reduction (SCR) NOx sensor module |
| 30 | High Pressure (HP) Exhaust Gas Recirculation (EGR) bypass valve vacuum actuator |
| 31 | High Pressure (HP) Exhaust Gas Recirculation (EGR) pressure sensor |
| 32 | Cylinder block temperature sensor |
| 33 | Piston cooling oil jets solenoid |
| 34 | Block heater (if equipped) |
| 35 | Glow plug (4 off) |
| 36 | Post Selective Catalyst Reduction (SCR) soot sensor module |
| 37 | Post Selective Catalyst Reduction (SCR) soot sensor |
| 38 | Post Selective Catalyst Reduction (SCR) NOx sensor module |
| 39 | Post Selective Catalyst Reduction (SCR) NOx sensor |
| 40 | Exhaust gas temperature sensor - post Diesel Particulate Filter (DPF) |
| 41 | Exhaust gas temperature sensor - pre catalytic converter |
| 42 | Exhaust gas temperature sensor - pre Diesel Particulate Filter (DPF) |
