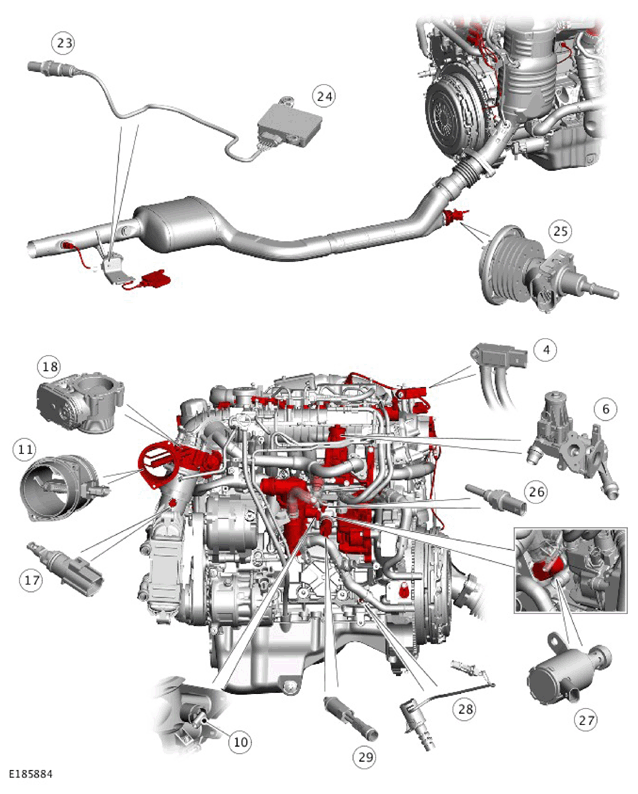

Component Location - EU6 - Sheet 2 Of 2
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Low Pressure (LP) Exhaust Gas Recirculation (EGR) valve and Exhaust Gas Recirculation (EGR) pressure sensor |
| 2 | Variable Geometry Turbocharger (VGT) vane actuator |
| 3 | Heated Oxygen Sensor (HO2S) Manifold Absolute Pressure and Temperature (MAPT) sensor |
| 4 | Differential pressure sensor - Diesel Particulate Filter (DPF) |
| 5 | Fuel injector (4 off) |
| 6 | High Pressure (HP) Exhaust Gas Recirculation (EGR) valve and motor |
| 7 | Fuel metering valve |
| 8 | Fuel temperature sensor |
| 9 | Crankshaft Position (CKP) sensor |
| 10 | Electric thermostat and Engine Coolant Temperature (ECT) sensor |
| 11 | Mass Air Flow and Temperature (MAFT) sensor |
| 12 | Fuel rail pressure sensor |
| 13 | Exhaust gas temperature sensor - post Diesel Particulate Filter (DPF) |
| 14 | Variable Camshaft Timing (VCT) solenoid |
| 15 | Fuel rail pressure control valve |
| 16 | Manifold Absolute Pressure and Temperature (MAPT) sensor |
| 17 | Charge air cooler temperature sensor |
| 18 | Electric throttle |
| 19 | Variable coolant pump |
| 20 | Cylinder head temperature sensor |
| 21 | Oil pressure and temperature sensor |
| 22 | Exhaust gas temperature sensor - pre Diesel Particulate Filter (DPF) |
| 23 | Post selective Catalyst reduction (SCR) NOx sensor |
| 24 | Post selective Catalyst reduction (SCR) NOx sensor module |
| 25 | Diesel Exhaust Fluid (DEF) injector |
| 26 | Cylinder block temperature sensor |
| 27 | Piston cooling oil jets solenoid |
| 28 | Oil pressure control solenoid electrical connector |
| 29 | Block heater (if equipped) |
