Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. 1.Remove the instrument panel lower trim panel. Refer to: Instrument Panel Lower Trim Panel .

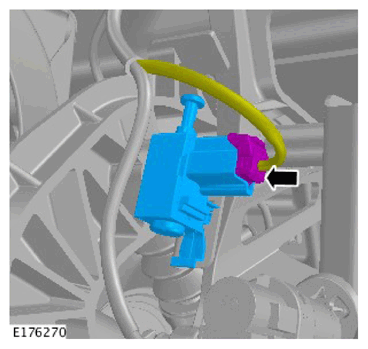

  2. Disconnect the clutch pedal position sensor electrical connector.
    G11308439

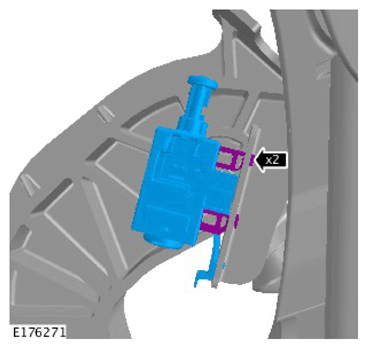

  3. Remove the clutch pedal position sensor.
    G11308440
