Low Diesel Exhaust Fluid (DEF) Level Detected
here are five warning stages displayed in the IC message center. Each warning progresses, until a final 'No Engine Restart Possible' warning is displayed.
If the DEF fluid is not replenished within this distance, and the engine is turned off, the vehicle will fail to start. In this event customers can use two standard size refill bottles as a short term solution to restart the vehicle, a complete refill of the DEF tank will still be required by an authorized Jaguar dealer.
| STAGE | WARNING | MESSAGE | CAUSE |
|---|---|---|---|
| Stage 1 | Message at engine start | Diesel Exhaust Fluid Level Low DEF range | DEF range < 2400 km/1500 miles |
| Stage 2 | Amber symbol | Fill Diesel Exhaust Fluid Tank | DEF range <1610 km/1000 miles |
| Stage 3 | Amber symbol | No Engine Restarts Possible in 800 km/500 miles. Fill Diesel Exhaust Fluid Tank | DEF range <800 km/500 miles |
| Stage 4 | Amber symbol | No Engine Restarts Possible Soon. Fill Diesel Exhaust Fluid Tank | DEF range <160 km/100 miles |
| Stage 5 | Red symbol | No Engine Restarts Possible. Fill Diesel Exhaust Fluid Tank | DEF range 0 km/0 miles |

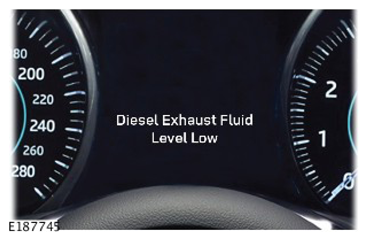

Stage 1
Stage 1 is a low priority message advising of a 'DEF Level Low' , this is given 2400 km (1500 miles) ahead of any vehicle restriction in order to allow time to visit an authorized Jaguar dealer to refill the DEF tank.
Stage 2
Stage 2 is an amber warning symbol to fill the DEF tank but no distance reference is given at this stage.

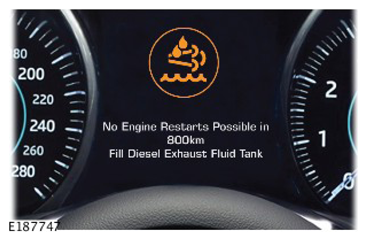

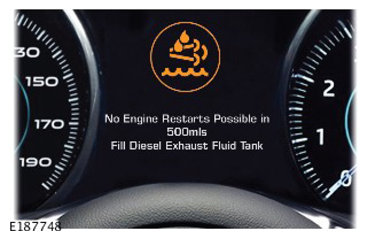

Stage 3
Stage 3 is an amber warning symbol with a kilometer/mileage reference before the DEF tank is empty.

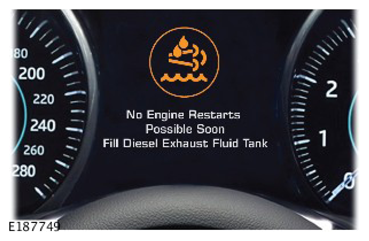

Stage 4
Stage 4 is the final amber warning symbol, no distance reference is given, but approximately 160 km (100 miles) remain before the DEF tank is empty.

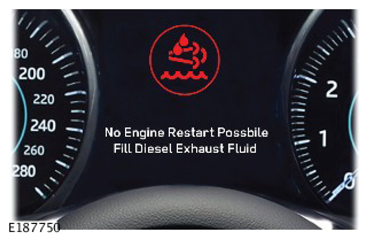

Stage 5
Stage 5 is a red warning symbol, this indicates the DEF tank is empty and restart of the vehicle is no longer possible. In this event customers can use two standard size refill bottles as a short term solution to restart the vehicle, a complete refill of the DEF tank will still be required by an authorized Jaguar dealer.
