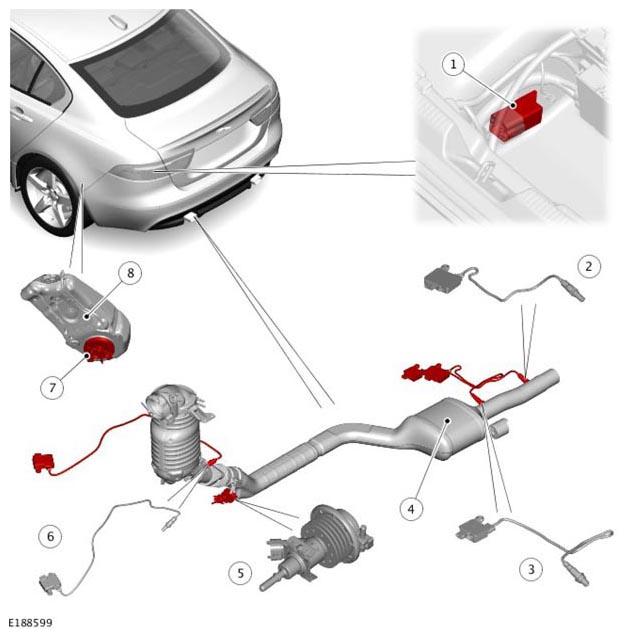

Component Location
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Diesel Exhaust Fluid (DEF) heater control unit |
| 2 | Post Selective Catalytic Reduction (SCR) Nitrogen Oxide (NOx) sensor |
| 3 | Post Selective Catalytic Reduction (SCR) soot sensor (NAS market vehicles only) |
| 4 | Selective Catalytic Reduction (SCR) catalytic converter |
| 5 | Diesel Exhaust Fluid (DEF) injector |
| 6 | Pre Selective Catalytic Reduction (SCR) Nitrogen Oxide (NOx) sensor (NAS market vehicles only) |
| 7 | Diesel Exhaust Fluid (DEF) tank module |
| 8 | Diesel Exhaust Fluid (DEF) tank |
