Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Observe due care when working near a hot exhaust system.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Removal steps in this procedure may contain installation details.
  1. Raise and support the vehicle.
    WARNING: Make sure to support the vehicle with axle stands.
  2. Refer to: Rear Silencer .
  3. Refer to: Air Deflector .

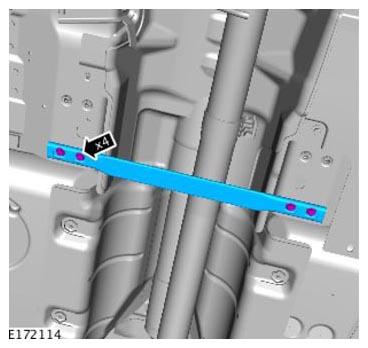

  4. G11314589

    Torque Specification: 30 Nm

  5. G11308453

    Torque Specification: 7 Nm

  6. G11314563
  7. G11308104
  8. G11314593

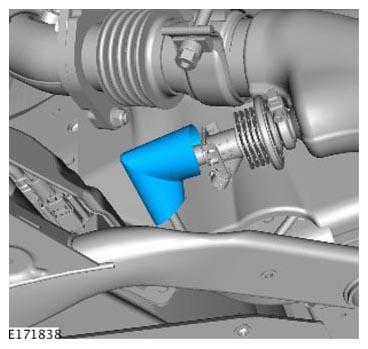

  9. G11314576
  10. WARNING: Be prepared to collect escaping fluid.
    CAUTION:
    • Make sure that the area around the component is clean and free of foreign material.
    • Make sure that all openings are sealed. Use new blanking caps.

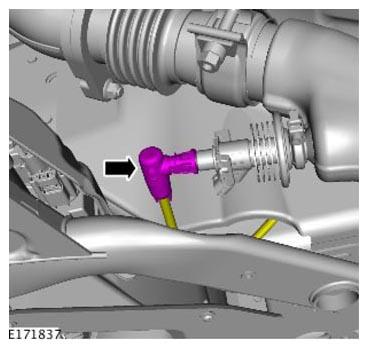

    G11314577
  11. CAUTION: Make sure that the exhaust system is supported with suitable retaining straps.
    G11314565

    Torque Specification: 40 Nm

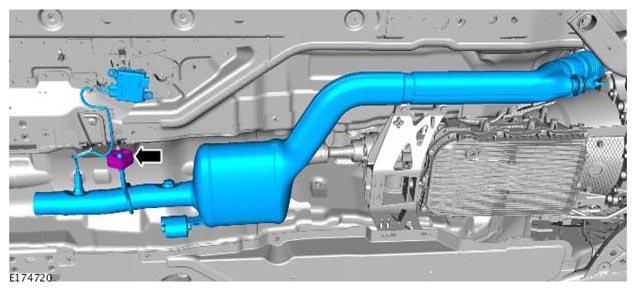

  12. G11314597
  13. CAUTION: Discard the seal.
    NOTE:
    • Do not disassemble further if the component is removed for access only.
    • Discard the bolt and clamp.

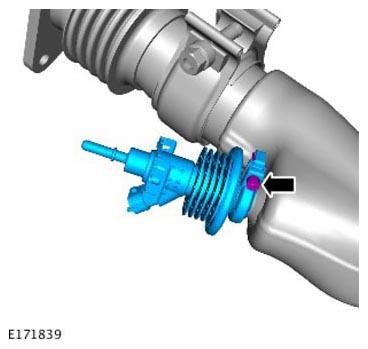

    G11314581

    Renew Part: Diesel exhaust fluid injector seal Quantity: 1

    Renew Part: Diesel exhaust fluid injector clamp and bolt Quantity: 1

    Torque Specification: 5 Nm

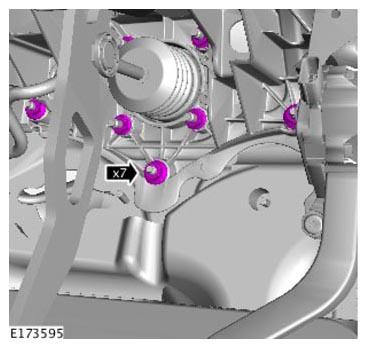

  14. G11297341

    Torque Specification: 48 Nm

  15. CAUTION: Make sure that a new bolt is installed.
    G11314584

    Torque Specification: 22 Nm
