Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Observe due care when working near a hot exhaust system.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

All vehicles

  1. Raise and support the vehicle.
    WARNING: Make sure to support the vehicle with axle stands.
  2. Refer to: Air Deflector .
  3. G11314560

    Torque Specification: 30 Nm

  4. G11305499

    Torque Specification: 7 Nm

    NAS vehicles

  5. G11308454

    All vehicles

  6. G11314563
  7. CAUTION: Make sure that the exhaust system is supported with suitable retaining straps.
    G11314564
  8. CAUTION: Make sure that the exhaust system is supported with suitable retaining straps.
    G11314565

    Torque Specification: 40 Nm

  9. G11314566
  10. NOTE: Do not disassemble further if the component is removed for access only.
    G11314567

    Torque Specification: 48 Nm

    NAS vehicles

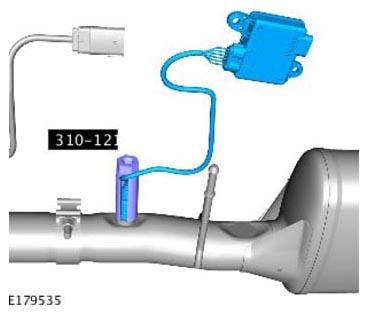

  11. G11314568

    Torque Specification: 48 Nm
