Removal And Installation: Removal
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Observe due care when working near a hot exhaust system.
NOTE:
Removal steps in this procedure may contain installation details.
All vehicles
- Raise and support the vehicle.WARNING: Make sure to support the vehicle with axle stands.
- Refer to: Air Deflector .
Torque Specification: 30 Nm
Torque Specification: 7 Nm

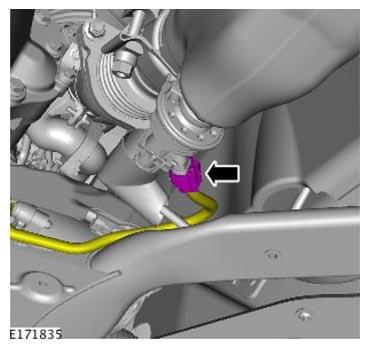

NAS vehicles
All vehicles
-
WARNING: Be prepared to collect escaping fluid.CAUTION:
- Make sure that the area around the component is clean and free of foreign material.
- Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
-
CAUTION: Make sure that the exhaust system is supported with suitable retaining straps.
-

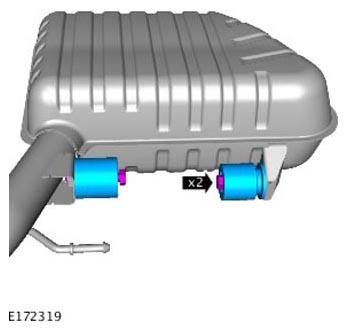

CAUTION: Make sure that the exhaust system is supported with suitable retaining straps.
Torque Specification: 40 Nm
-
NOTE: Do not disassemble further if the component is removed for access only.
-
CAUTION: Discard the seal.NOTE: Discard the bolt and clamp.
Renew Part: Diesel exhaust fluid injector seal Quantity: 1
Renew Part: Diesel fuel injector bolt and clamp Quantity: 1
Torque Specification: 5 Nm
Special Tool(s): 310-121
Torque Specification: 48 Nm
NAS vehicles
Special Tool(s): 310-121
Torque Specification: 48 Nm
All vehicles
-
CAUTION: Make sure that a new bolt is installed.
Torque Specification: 22 Nm
-
CAUTION: Make sure that new bolts are installed.
Torque Specification: 22 Nm
