Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine cover.

    Refer to: Engine Cover - INGENIUM I4 2.0L Diesel .

  2. Remove the heat shield.
    G11314620

    Torque Specification: 10 Nm

  3. Using suitable cutting/grinding equipment remove the clamp weld at the points illustrated.
    G11314621

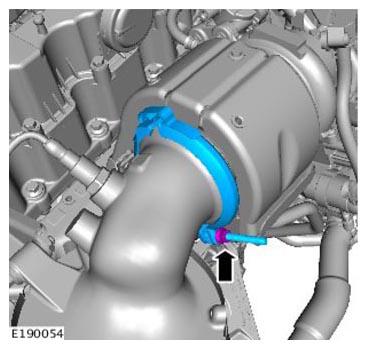

  4. Remove the clamp.
    G11314622

    Torque Specification: 10 Nm
